UPS de 500 VA/300 W, topología de línea interactiva, entrada de 120 Vca NEMA 5-15P, tipo rack 1 UR, con 6 tomas NEMA 5-15R
- SKU OR500LCDRM1UA
- Categoria Videovigilancia > Energía > UPS - No Break
General Features

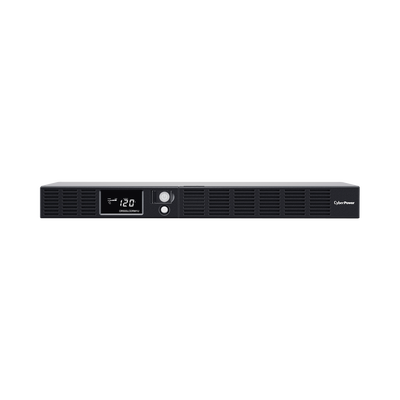

The CyberPower OR500LCDRM1U is a line-interactive UPS that provides simulated sine wave output for office system devices including PCs, workstations, network devices, and peripherals. It is typically integrated into back offices, server rooms, and data center environments to ensure reliable backup power during power outages.
In addition, its convertible rack/tower design offers optimized flexibility for mounting and operation in almost any environment.
Technical Features
- Input Voltage: 90 - 140V
- Input Frequency: 57 - 63Hz
-
Input Plug Type: NEMA 5-15P
- Cable Length: 3 m
- Output VA: 500
- Output Watts: 300
- Total Output Outlets: 6 (4 backup and protection, 2 protection only)
-
Outlet Types: 6 NEMA 5-15R
- Wave Type: Simulated
- Battery Specifications: 2 x 6V/7Ah
- Backup Time with Half Load (150 W): 12 Minutes
- Backup Time with Full Load (300 W): 3 Minutes
- Remote Management Card: RMCARD205
- Surge Protection: 1030 Joules
- Data Protection: RJ11 Telephone
- Indicators: LCD Readout Display
- Dimensions: 433 X 44 X 235 mm (Width x Height x Depth)
- Weight: 8.2 kg
- Certifications: FCC Class B, UL, NOM
- Not compatible with power generators (backup plants).
- Batteries included
Features
- Multifunction LCD screen providing real-time information
- Network ports for protection against sudden power surges due to lightning strikes
- Convertible rack/tower design
- Hot-swappable batteries
Applications
- Protection for PCs and workstations
- Protection for network devices
- Back office
- Server room
- Data center environments
Safety Features
- 1030 Joules surge protection
- RJ11 telephone line data protection
- Overload protection design
- Short-circuit protection
- Audible alarm system for abnormal conditions
Management Features
- Multifunction LCD display
- RMCARD205 remote management card
- Hot-swappable batteries
- Status notification via LED indicators
