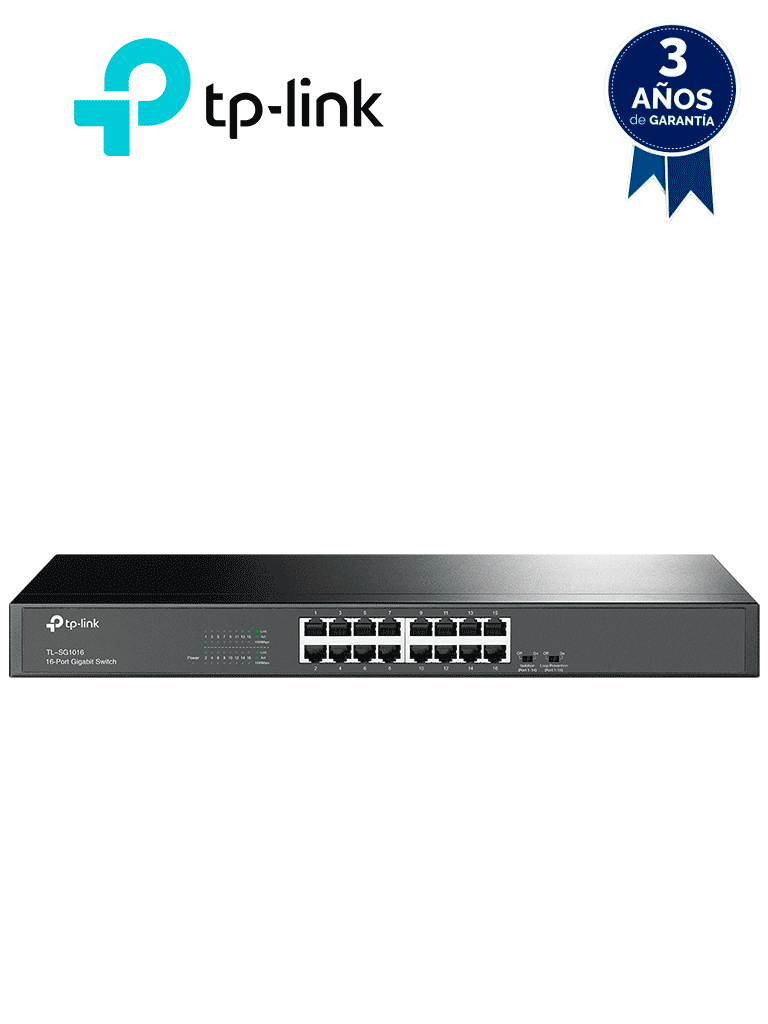

TP-LINK TL-SG1016 - Switch Gigabit de 16 puertos 10/100/1000 Mbps no administrable para rack
- SKU TL-SG1016
General information
It is a 16-port 10/100/1000 Mbps unmanaged Gigabit switch designed for high-performance networks. It allows connecting multiple devices in a local network, offering fast data transfer speeds, up to 1000 Mbps per port. Its rack-mountable design facilitates its integration into data centers or offices, optimizing space utilization. This switch is ideal for improving network efficiency, increasing connectivity, and ensuring fast and stable communication between equipment without the need for complex configurations.
Main features
- 16 10/100/1000 Mbps RJ45 ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address auto-learning and Auto MDI/MDIX
- Standard 19-inch rack-mountable steel casing
Technical specifications.
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
- Interface: 16 10/100/1000 Mbps RJ45 ports (Auto Negotiation / Auto MDI / MDIX)
- Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
- Number of Fans: Fanless
- Physical Security Lock: No
- Power Supply: 100-240VAC, 50/60Hz
- Dimensions: 17.3*7.1*1.7 in. (440*180*44 mm)
- Mounting: Rack-mountable
- Maximum Power Consumption: 9.26W(220V/50Hz)
- Maximum Heat Dissipation: 31.60BTU/h
Includes
- 16-Port Gigabit Switch
- Power Cable.
- Installation Guide
- Rubber Feet
TP-Link Green Technology
This new generation Gigabit switch TL-SG1016 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to link status to limit your network's carbon footprint. It also complies with EU RoHS, which prohibits the use of certain hazardous materials. In addition, most of the packaging material can be recycled.
High performance
All 16 ports are Gigabit RJ-45 ports that can provide large file transfers and are also compatible with 10 Mbps and 100 Mbps Ethernet devices. With a non-blocking switching architecture, the TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10 KB Jumbo Frame, the performance of large file transfers is significantly improved. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate traffic congestion and make the TL-SG1016 work reliably. It is a perfect choice to upgrade your network to Gigabit while adequately protecting your previous investment.
Easy to use
The automatic features of this gigabit switch make installation plug and play and hassle-free. No configuration is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
