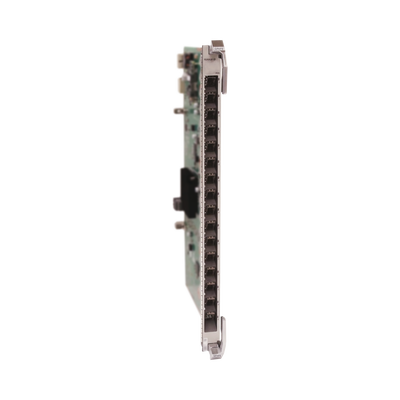

Huawei EA5800 OLT 16-Port GPON Service Board
Review: 5 -
Rated 5/5 based on 11 customer reviews
"Excelentes productos" by , written onJun 4, 2021
Los productos siempre en tiempo y forma.
Vigilancianetwork 1

Huawei EA5800 OLT 16-Port GPON Service Board

Disponible: En Stock
  • SKU H903GPHFE02
$ 60,897.01 MXN

The H903GPHFE02 card is an interface card with 16 GPON ports. It works together with an EA5800 chassis to provide GPON access service to ONTs/ONUs.

Features
  • Compatible with EA5800-X2, EA5800-X7, EA5800-X15 and EA5800-X17 OLTs
  • High density and low power consumption, compatible with 2048 ONTs/ONUs (maximum 1024 ONTs/ONUs recommended)
  • Maximum split ratio:
    • Class B+: 1:64
    • Class C+/C++: 1:128
  • Forwarding Capacity: 40 Gbit/s
  • T-CONTs per PON port: 1024
  • Operating temperature: -40 °C to +65 °C
  • Static power consumption: 21 W
  • Maximum power consumption: 47 W
  • Includes 16 Class C+ GPON modules

Download the datasheet here

The H903GPHFE02 card is an interface card with 16 GPON ports. It works together with an EA5800 chassis to provide GPON access service to ONTs/ONUs.

 Features
  • Compatible with EA5800-X2, EA5800-X7, EA5800-X15 and EA5800-X17 OLTs
  • High density and low power consumption, compatible with 2048 ONTs/ONUs (maximum 1024 ONTs/ONUs recommended)
  • Maximum split ratio:
    • Class B+: 1:64
    • Class C+/C++: 1:128
  • Forwarding Capacity: 40 Gbit/s
  • T-CONTs per PON port: 1024
  • Operating temperature: -40 °C to +65 °C
  • Static power consumption: 21 W
  • Maximum power consumption: 47 W
  • Includes 16 Class C+ GPON modules

Download the datasheet here
