ATEN HDMI KVM Switch | 8-Port | 8-Port USB/Cable

Disponible: En Stock
$ 19,053.25 MXN

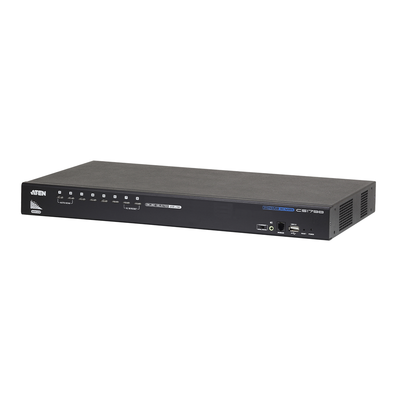

Switch KVM HDMI ATEN CS1798
Diagrama de conexión CS1798

It allows consolidating access and control of up to 8 computers with HDMI connection from a single console (USB keyboard, USB mouse, and monitor). It can be cascaded up to three levels to control up to 512 computers from a single console. It features multi-monitor functionality, allowing up to 8 switches to be stacked for using multiple monitors and simplifying the work environment. It is compatible with ATEN's On-Screen Display (OSD) menu, facilitating access to any connected computer and backing up and restoring OSD settings. Additionally, it offers multimedia keyboard support and enabled audio, allowing audio from each computer to be heard on two sets of speakers.

Easy Operation
  • Three port selection methods: Manual, Hotkey, and multilingual OSD (On-Screen Display)
  • Multi-language keyboard support
Scan and Broadcast Mode
  • Auto scan
  • Broadcast mode for simultaneous monitoring and commands on all computers
Superior Video Quality
  • Supports video resolutions up to 1920 x 1200 @ 60 Hz up to 30 meters
Multiple Users
  • Supports up to 10 user accounts
  • 1 administrator account
RJ-45 Connectors and Cat 5e/6 Cabling
  • Space saving with convenient 1U rack installation
  • Reducing cable clutter
Adapter Cables with ID Function
  • Supports automatic ID recognition of new ATEN KVM cable adapters
  • Allowing port changes without reconfiguration
USB Console and HDMI Compatibility
  • One USB console controls eight computers with HDMI outputs and two additional USB 2.0 devices
  • HDMI compatible
  • Can be cascaded up to three levels, controlling up to 512 computers
  • Allows stacking up to eight units for multi-monitor views
USB Hub and Switching Functions
  • Includes a 2-port USB 2.0 hub
  • Independent switching between KVM control and USB signals
  • Backup/restore function
  • Firmware is upgradeable
  • Video DynaSync™ technology optimizes resolution when switching ports
Image and Sound Quality
  • Superior image quality with resolutions up to 1080p
  • Supports 2.1 surround sound
  • Front panel audio ports
  • HDCP compatible and multiple platforms (Windows, Linux, Mac, Sun)
  • Emulates Sun/Macintosh keyboards
  • Supports hot-plugging
Multilingual Menu
  • The menu is multilingual
  • Supports keyboard mapping in various languages

Technical Specifications

Video Input

  • Interfaces: 16 x HDMI Type A female (Black)
  • Impedance: 100 Ω
  • Maximum distance: up to 5 m

Video Output

  • Interfaces: 16 x HDMI Type A female (Black), 1 x HDMI Type A female (Black) in Array mode
  • Impedance: 100 Ω
  • Maximum distance: up to 15 m

Video

  • Maximum data rate: 6.75 Gbps (2.25 Gbps per lane)
  • Maximum pixel clock: 225 MHz
  • Compliance:
    • HDMI (3D, Deep Color)
    • HDCP 1.4 Compatible
    • Consumer Electronics Control (CEC)
  • Maximum resolution: Up to 1080p

Audio

  • Output: 1 x Mini Stereo Jack female (Green)

Control

  • RS-232:
    • Connector: 1 x DB-9 female (Black)
    • Baud rate: 19200
    • Data bits: 8
    • Stop bits: 1
    • Parity: No
    • Flow control: No
  • Ethernet: 1 x RJ-45 female

EDID Configuration

  • EDID Mode: Default / Port 1 / Remix / Custom (EDID Wizard support)

Switches

  • Power: 1 x Rocker Switch

Power

  • Ratings: 100-240 VAC; 50-60 Hz; 1.0 A
  • Power consumption:
    • 110 Vac: 124.5 W: 584 BTU/h
    • 220 Vac: 121.8 W: 571 BTU/h

Environmental Conditions

  • Operating temperature: 0 - 40 °C
  • Storage temperature: -20 - 60 °C
  • Relative humidity: 0 - 80% RH, Non-condensing

Physical Properties

  • Casing: Metal
  • Weight: 7.86 kg (17.31 lbs)
  • Dimensions (L x W x H):
    • 43.24 x 38.18 x 8.80 cm
    • 17.02 x 15.03 x 3.46 inches
  • Rack height (U spaces): 2U

VIDEOS

Download the datasheet here
