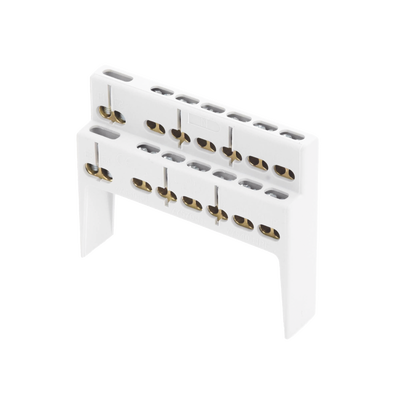

Soporte + Barra de Conexión (12/24/36 MÓD.) (12+2 ENTR.) IP40
Review: 5 -
Rated 5/5 based on 11 customer reviews
"Excelentes productos" by , written onJun 4, 2021
Los productos siempre en tiempo y forma.
Vigilancianetwork 1

Soporte + Barra de Conexión (12/24/36 MÓD.) (12+2 ENTR.) IP40

Disponible: En Stock
$ 252.50 MXN

Key Features

  • Compatibility with 12/24/36 connection modules
  • Includes 12+2 inputs for additional connections
  • Compact design suitable for IP40 environments
  • Robust construction for industrial use
  • Easy installation in existing modular systems
Technical Specifications
  • Protection against: Short-circuit and overload currents
  • Position indicator: Color-coded for status display
  • Application: Domestic, commercial, and industrial installations
  • Tripping curves: B (3-5In), C (5-10In), D (10-14In)
  • Breaking capacity: Up to 6000A
  • Electrical life: 4,000 cycles
  • Ambient temperature: -5°C to +40°C (operation), -25°C to +70°C (storage)
  • Connection: Screws for 18-4 AWG (25mm²) cables, 10mm² copper bar
  • Mounting: DIN rail EN 60715 (35mm)
  • Protection degree: IP40
Dimensions
  • Dimensions: 49.5±0.31mm (width) × 54.1mm (height)
  • Module spacing: 13.0±5mm
Compatibility
  • Compatibility: 12, 24, and 36-position connection modules
  • Electrical compatibility: With NB1-63 and NB1-63H circuit breakers
Standards and Certifications
  • IEC/EN 60898-1
  • IEC/EN 60947-2
  • UL1077

Applications

  • Electrical circuit protection in residential installations
  • Equipment protection in commercial and industrial systems
  • Low voltage transformer protection
  • Protection of loads with high current peaks
Detailed Technical Characteristics
  • Rated voltage: 230/400V AC
  • Insulation voltage: 500V
  • Frequency: 50/60Hz
  • Energy limiting class: Class 3
  • Withstand voltage: 4000V (1.2/50μs)
  • Dielectric test: 2kV/1min
  • Pollution degree: 2
  • Torque: 2.5 N·m (22 in-lbs)
Selection and Protection
  • Curve B: 3-5In - Protection for people and long cables in TN and IT systems
  • Curve C: 5-10In - Protection for resistive and inductive loads with low initial consumption
  • Curve D: 10-14In - Protection for transformers and discharge lamps
  • Selection: Based on short-circuit current and system voltage
Additional Features
  • Trip-free mechanism
  • Space for heat dissipation
  • Extendable fuse holder for easy installation
  • Accepts busbars

Download the technical datasheet here
