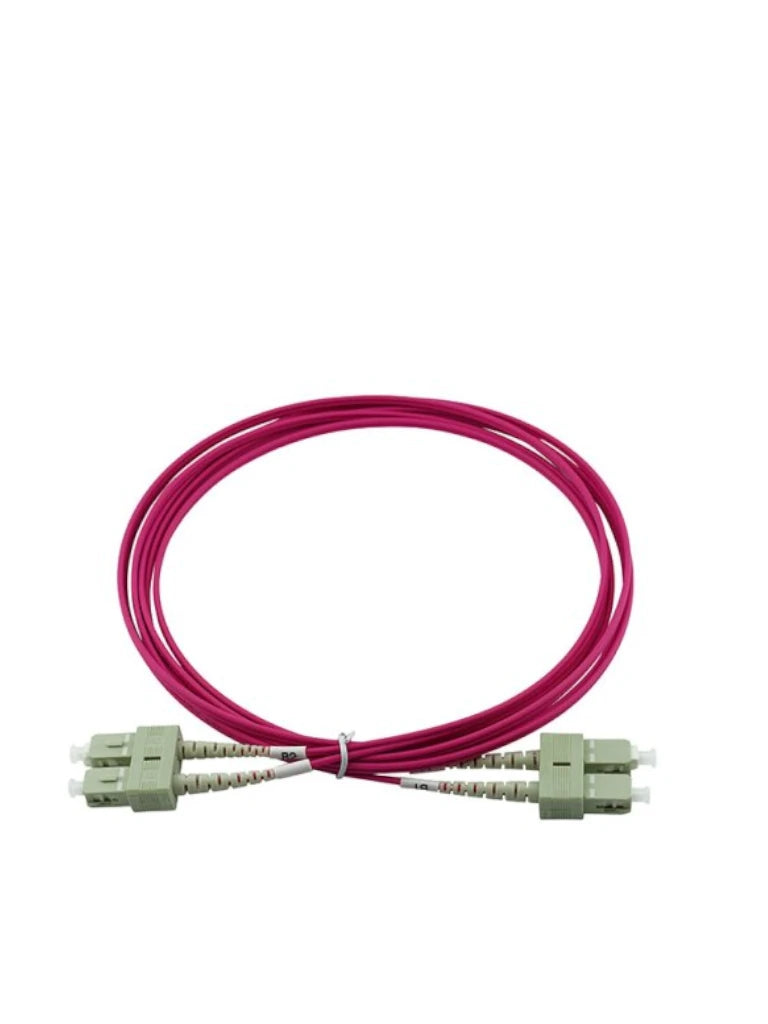

SBE TECH SBE-JUMSCSC1M50 Puente SC-SC MULTIMODO 50/125 OM4 dúplex 2 mm, 1 metro, UPC
- SKU SBE-JUMSCSC1M50
Características.
DESCRIPCIÓN
The SBE TECH SC-SC multimode duplex jumper offers high quality and effectiveness in connections, easy installation and time saving, available in 1, 2, 3, 5 and 10 meter versions, manufactured with 50/125µm OM4 optical fiber.
ESPECIFICACIONES
Fiber type: 50/125µm OM4
Number of fibers: 2
Connector type: SC-SC duplex
Connector body: Plastic
Ferrule: Zirconia ceramic
Ferrule polish: Ultra Physical Contact (UPC)
Outer jacket color: Aqua
INFORMACIÓN TÉCNICA
Jacket material: Flame retardant PVC
Strength member: Aramid yarns
Complies with: TIA/EIA 568-C.3 IEEE 802.3 Telcordia GR-326/409/20-CORE
CARACTERISTICAS
Connector fixation: Push-pull type
Ferrule diameter: 2.5mm
Insertion loss (IL): ≤0.25 dB
Return loss (RL): ≥40.0 dB
APLICACIONES
SBE TECH's 50/125µm multimode jumpers are ideal for reliable and practical fiber network management, providing greater cable flexibility when grouping them within organizers for both Racks and cabinets. Composed of OM4 optical fiber, they are compatible with OM3 fiber optic systems.
INCLUYE
1 SC - SC UPC multimode fiber optic jumper
