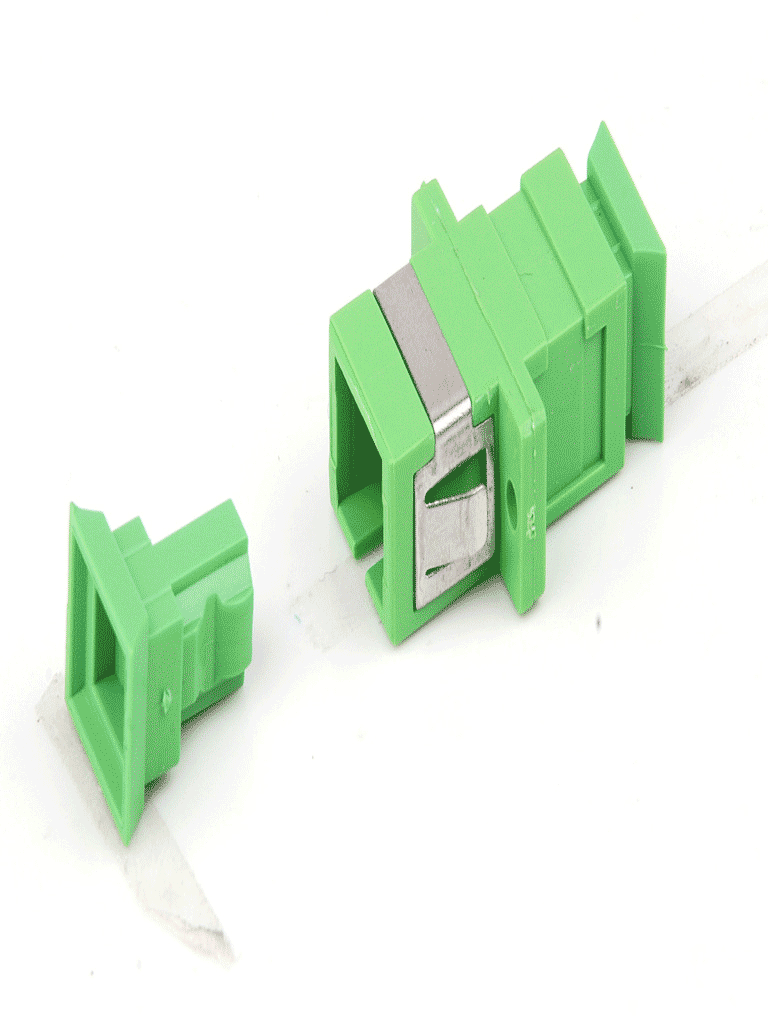

SBE TECH SBE-ADAPSCAPC-S - Simplex SC/APC to SC/APC Singlemode/Green Adapter with Ears
- SKU SBE-ADAPSCAPC-S
Key Features
An SC APC (Subscriber Connector Angled Physical Contact) coupler is a device used in fiber optic networks to connect two SC APC fiber optic cables. SC APC connectors are a variant of SC (Subscriber Connector) connectors that incorporate an angled polish to reduce the amount of light reflected in the connection.
The SC APC coupler is used to join two fiber optic cables with SC APC connectors, providing a secure and low-loss connection for transmitting optical signals. It is commonly used in telecommunications networks, data transmission systems, local area networks (LANs), CCTV systems, and other applications where a reliable and high-quality optical connection is required. The angled physical contact (APC) polish of the connector helps minimize return losses, which is crucial in interference-sensitive applications and where high signal quality is needed.
The single-mode SC simplex adapter offers high quality and effectiveness in connections, easy installation, and time savings. It is designed to couple and align two SC connectors with an APC finish, allowing the continuity of light from one end to the other with the lowest possible loss.
Although the color indicates it is for use with SC APC connectors, it can be used without any problem with SC UPC.
*If you have questions about fiber optics or want a basic course on connectorization or the use of fiber optics, please contact me (alonso.mendez@tvc.mx)
SPECIFICATIONS
Body material: Plastic
Sleeve material: Ceramic
Connector type: SC/APC (Can be used with SC UPC connectors) simplex
Fixing type: One-click steel guide (screw-on optional)
TECHNICAL INFORMATION
Body material: ABS
Body color: Green
Complies with: TIA/EIA 568-C.3
IEEE 802.3
Telcordia GR-326/409/20-CORE
INCLUDES
1 SC APC Coupler for making connections between 2 fiber optic cables or between a cable and a fiber jumper, allowing a connection without the need for a fusion splicer, with very low attenuation in its integration.
Technical specifications
Specifications:
Body material: Plastic
Sleeve material: zirconia ceramic
Connector type: SC simplex
Fixing type: One-click steel guide (screw-on optional)
Technical information:
Body material: ABS
Body color: Green
Complies with: TIA/EIA 568 -C.3, IEEE 802.3, Telcordia GR-326/409/20-CORE
Features:
Connector fixation: Push-Pull
Sleeve internal diameter 2.5mm (SC)
Insertion loss (IL): <0.3 dB
Return loss (RL): >55dB
Includes:
1 SC/APC coupler
Download technical datasheets/manuals
