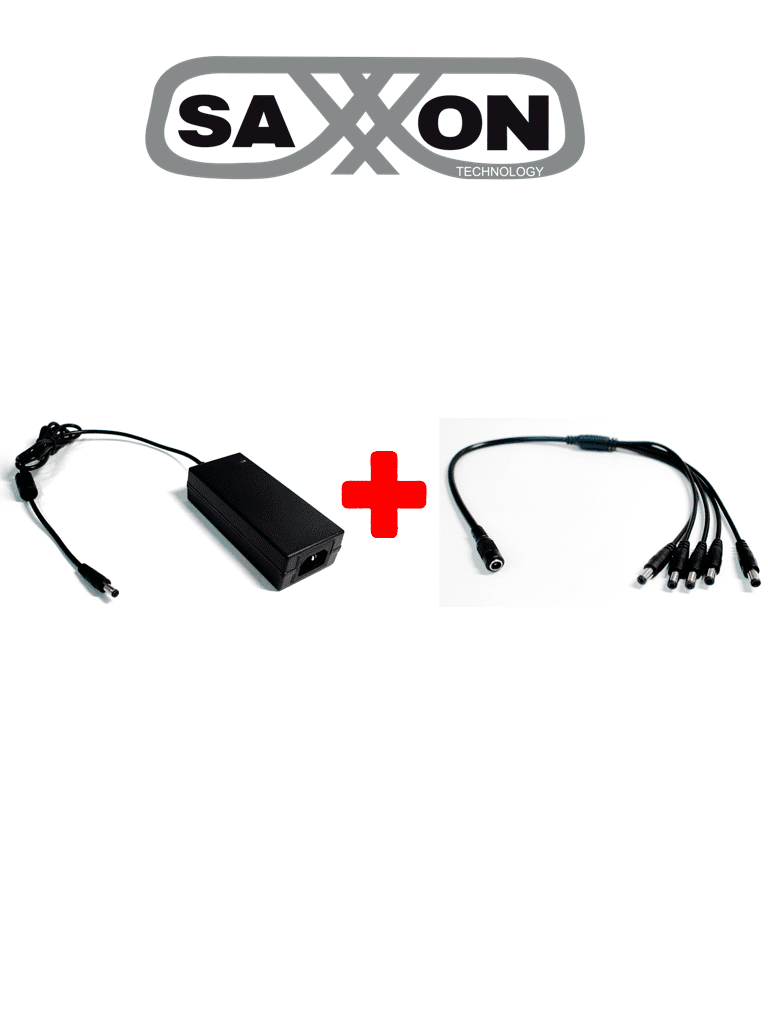

SAXXON PSU1205DPAQ2 - Fuente de alimentación y divisor de potencia / 12 V CC / 5 A MP
- SKU PSU1205D + PSUWB08
- Categoria CCTV Industrial > Fuentes de Energía > Fuentes de Poder y Adaptadores
General information
A transformer is an electrical device that allows increasing or decreasing the voltage in an alternating current electrical circuit, maintaining the power. The power entering the equipment, in the case of an ideal transformer (i.e., without losses), is equal to that obtained at the output. Real machines have a small percentage of losses, depending on their design and size, among other factors.
The transformer is a device that converts alternating electrical energy from a certain voltage level to alternating energy of another voltage level, based on the phenomenon of electromagnetic induction. It consists of two or more coils of conductive material, wound on a closed core of ferromagnetic material, but electrically isolated from each other. The only connection between the coils is the common magnetic flux established in the core. The core is generally made of either iron or stacked sheets of electrical steel, an appropriate alloy to optimize magnetic flux. The coils or windings are called primary and secondary depending on whether they correspond to the input or output of the system in question, respectively. There are also transformers with more windings; in this case, there may be a "tertiary" winding, with lower voltage than the secondary.
SAXXON PSU1205D
Regulated power supply 12V DC / 5 Amperes / UL Certified / Ideal for high current consumption CCTV equipment
Specifications.
- Input voltage range 100-240 VAC
- Output voltage 12VDC
- Output current 5Amp
- Output power 49.2W
- Efficiency> 80%
- Working temperature -0°C ~ 40°C
- Storage temperature -25°C ~ 75°C
- Humidity 85%
- Nominal input voltage 100-240 VAC
- Input voltage range 100-240 VAC
- Input current <1.6A
- Input frequency range 50-60Hz
- No-load voltage 12-12.6VDC
- Full-load voltage 11.6-12.6VDC
- Current range 0.1-4.1A
- Ripple and noise <100mV
- Peak <150mV
- Start time <3s
- Hold time <20s
- Overcurrent protection rated 150%
- Short circuit protection YES
SAXXON PSUWB08
Power splitter / Octopus type / 5 Male connectors / 2.1 mm / 1 Female connector
Octopus type cable for power supply and distribution for 4 CCTV cameras, from a single power source. It has 4 male 2.1mm connectors for the cameras and one female connector for the power supply.
Main Features:
- 5 Male Octopus
- 1 Female Connector
Download technical sheets/manuals
