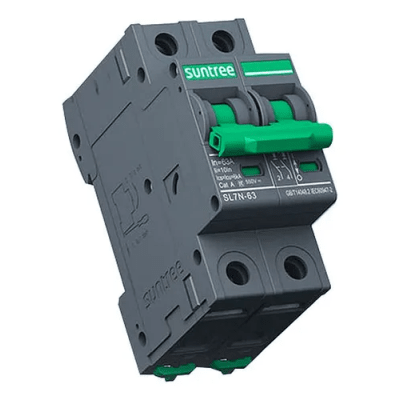

Thermal Protection/ 2P Switch, 40 A, Direct Current 800 Vdc for Photovoltaic Application DIN Rail Mounting
Thermal Protection/ 2P Switch, 40 A, Direct Current 800 Vdc for Photovoltaic Application DIN Rail Mounting
Disponible:
Sin Stock
- SKU SL7N63C40/2P
- Categoria Energía / Herramientas > Calidad de la Energía > Supresor de Picos Vcc
$ 530.31 MXN
Thermal protectors are designed to provide overcurrent protection within direct current (DC) circuits specially manufactured for use in solar energy, they are installed between solar panels and the interconnection inverter.
General Specifications
- Number of poles: 2P
- Operating voltage: 24V-800Vdc
- Rated current: 40A
- Rated insulation voltage: 1250VDC
- Installation type: DIN
- Protection: IP40 (IP20 for connection port)
- Operating temperature: -30°C to 70°C
- Trip type: B/C
- Type: Thermomagnetic
Mechanical and Electrical Characteristics
- Mechanical characteristic: Real average value
- Mechanical resistance: 20,000 times
- Electrical characteristic: Real average value
- Electrical resistance: 1,000 times (1500 times for other specified voltages)
Thermal protectors are designed to provide overcurrent protection within direct current (DC) circuits specially manufactured for use in solar energy, they are installed between solar panels and the interconnection inverter.
General Specifications
- Number of poles: 2P
- Operating voltage: 24V-800Vdc
- Rated current: 40A
- Rated insulation voltage: 1250VDC
- Installation type: DIN
- Protection: IP40 (IP20 for connection port)
- Operating temperature: -30°C to 70°C
- Trip type: B/C
- Type: Thermomagnetic
Mechanical and Electrical Characteristics
- Mechanical characteristic: Real average value
- Mechanical resistance: 20,000 times
- Electrical characteristic: Real average value
- Electrical resistance: 1,000 times (1500 times for other specified voltages)
