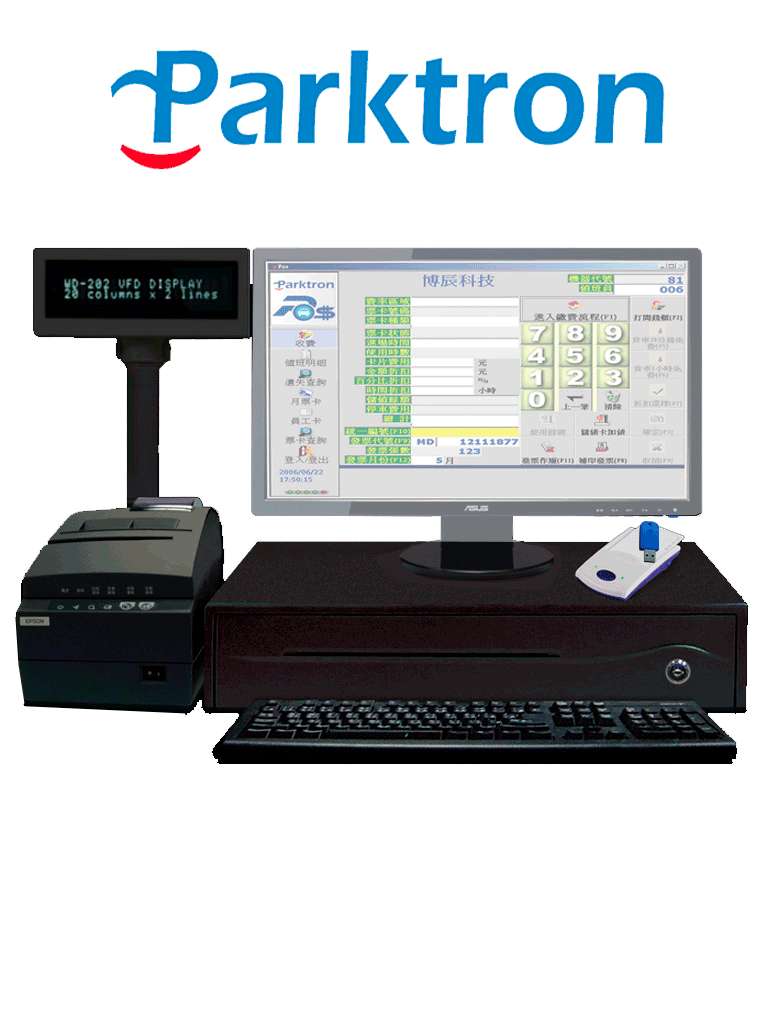

PARKTRON CCST209 - Manual chipcoin charging station / Includes software, USB reader, miniprinter, cash drawer, PC NOT INCLUDED
- SKU CCST209
General Information
A CCST209 Payment Station is a POS equipment or collection station handled by a person using Software (CPS2000) installed on a PC for the administration of a Parking system. It is compatible with Chipcoins (Mifare® IC cards) where we need an entry terminal that dispatches the token or chip coin to vehicles within the parking lot. In case of network failure, the parking system has the ability to be operated in independent mode (OFF LINE); the data will be saved offline and then sent back to the central administration server once the equipment re-establishes its communication via network (TCP/IP).
The manual payment station reads the encoded data contained in a ChipCoin, calculates and displays the amount to be charged on the screen according to the rates configured from our parking system. Once payment is made, the system allows the printing of a payment ticket with data such as entry and exit time, parking name, etc., the ChipCoin is ready to be re-entered into an entry station and the vehicle can now leave the parking lot.
Specifications:
A PC WITH THE FOLLOWING CHARACTERISTICS IS REQUIRED (NOT INCLUDED):
POS Equipment:
- CPU: Intel i3 (2.6 GHz) or higher.
Memory:
- 8 GB RAM or higher.
- 500 GB HDD or 120 GB SSD.
- Interface: IEEE 802.3, 100/1000 Mbps Ethernet.
- 17" Color TFT LCD Monitor.
- Availability of USB ports (5).
EQUIPMENT INCLUDED:
ChipCoin Reader/Writer.
Receipt printer (Miniprinter):
- Printing method: direct thermal.
- Printing speed: 25 RPM (6 inches per minute).
- Paper width: 60 mm.
Cash drawer: 4 trays for bills, 8 trays for coins.
TECHNICAL CHARACTERISTICS:
Working temperature: 0 ~ 50 ° C.
Electrical: 110 VAC 60Hz.
SOFTWARE FEATURES:
Application POS Software:
- Entry Management:
- Login username/password or authorization card required.
- Multiple authorization levels can be applied for different system function group configurations.
Parking rate configuration downloaded from the server:
- Time zone.
- Day of the week.
- Holidays.
- Courtesy time.
- Grace period.
- Commission calculation on lost tickets.
Discount Selection:
- Amount.
- Percentage.
- Hours.
Operator change report
Options
- Mifare card reader (wall-mount type) for season pass system.
- Color TFT LCD touchscreen for operator display.
