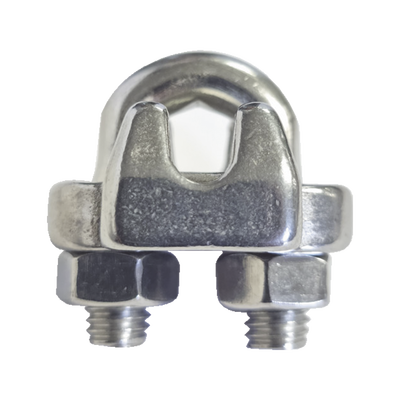

Nudo/ Abrazadera para Cable de Acero Forjado 3/16, Acero Inoxidable.

Key Features:

• Made of stainless steel.
• Recommended for 3/16' guy wire (SRET474CAM or SRET316DA)
• Recommended use per tie: 3 pieces
• Ideal for heavy loads
• Recommended for suspension or fastening of guyed towers, masts, poles and similar structures.

Safety Notes:

• Use the same size clip for the same size steel cable.
• Never use malleable iron clips in critical, heavy-duty applications, or for suspended loads, such as slings, suspension lines, guide lines, drag lines, load securing, scaffolding, etc.
• Malleable iron clips are for making terminations:

• Only for light-duty and non-critical applications such as light loads, handrails, gratings, area protections, etc.
• Apply an initial load to check the assembly. This load should be equal to or greater than the weight it will support. Then check and re-tighten the nuts to the recommended torque.

Method for installing the clamps:

1. Loop the cable the necessary length around the thimble, and install the first clamp at a distance equal to the width of its base from the extreme end of the cable. Tighten the nuts alternately to the specified torque.
2. When only two clamps are necessary, install the second one as close as possible to the cable bend or thimble, and tighten the nuts alternately to the specified torque. When more than two clamps are required, install the second clamp as close as possible to the cable bend or thimble and finger-tighten the nuts without tightening them.
3. Install all necessary clamps between the first two with equal spacing between them, and positioned in the same way. Make sure that the nuts of all clamps are tightened according to the specified torque.
4. Finally, apply a load equal to or greater than the one you expect to use to test the assembly. Then check, and if necessary, re-tighten the nuts according to the recommended torque using a torque wrench.
