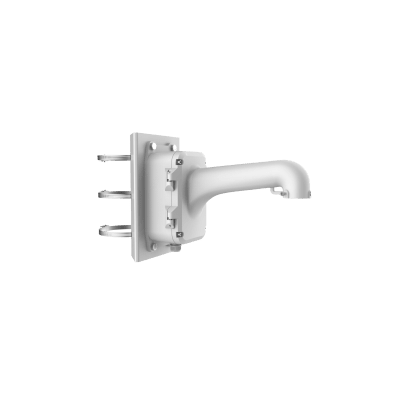

Wall Mount with Junction Box and Pole Mount for PTZ Domes
Wall Mount with Junction Box and Pole Mount for PTZ Domes
Disponible:
En Stock
- SKU DS-1604ZJ-BOX-POLE
- Categoria Videovigilancia > Accesorios Generales > Montajes y Brackets para Cámaras
🔒 Precio exclusivo para distribuidores e integradores (B2B)
Crea tu cuenta gratuita y accede a precios especiales, disponibilidad en tiempo real y condiciones comerciales preferenciales.
General Features
- Vertical pole mounting with junction box
- Compatible with Epcom and Hikvision domes
- Aluminum and steel alloy with surface treatment
- Adjustable diameter from 100 mm to 200 mm
- Bottom and rear cable outlets
Technical Specifications
- Model: DS-1604ZJ-BOX-POLE
- Material: Aluminum and steel alloy
- Color: Hikvision White
- Dimensions: 456.5 × 314 × 194.9 mm (17.97' × 12.36' × 7.67')
- Weight: 5.7 kg (12.57 lb)
Capacity and Safety
- Max. capacity: 10 kg (22 lb)
- Installation: Requires flat surface
- Resistance: Requires waterproof rubber for outdoor applications
- Safety: Includes hook for safety rope
- Structural requirement: Wall must support at least 3 times the total weight of the dome and mounting
General Features
- Vertical pole mounting with junction box
- Compatible with Epcom and Hikvision domes
- Aluminum and steel alloy with surface treatment
- Adjustable diameter from 100 mm to 200 mm
- Bottom and rear cable outlets
Technical Specifications
- Model: DS-1604ZJ-BOX-POLE
- Material: Aluminum and steel alloy
- Color: Hikvision White
- Dimensions: 456.5 × 314 × 194.9 mm (17.97' × 12.36' × 7.67')
- Weight: 5.7 kg (12.57 lb)
Capacity and Safety
- Max. capacity: 10 kg (22 lb)
- Installation: Requires flat surface
- Resistance: Requires waterproof rubber for outdoor applications
- Safety: Includes hook for safety rope
- Structural requirement: Wall must support at least 3 times the total weight of the dome and mounting
