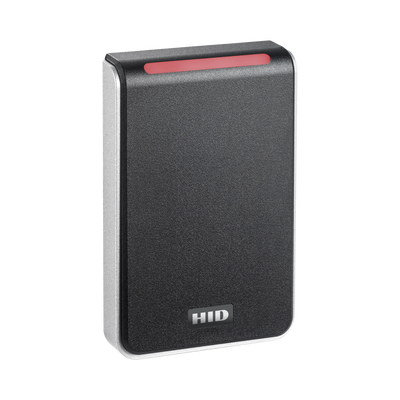

Lector SIGNO PRIORITY Multitecnología/ 40NKS-T0-000000/ Garantía de por vida/ Pigtail/Wiegand y OSDP
- SKU RS40SP
- Categoria Control de Acceso > Lectoras y Tarjetas > MIFARE®/iCLASS (13.56 MHz)
HID Signo™ is HID Global's iconic line of access control readers. The versatility, performance, and connection features of HID Signo readers set a new industry benchmark as the most adaptable, interoperable, and secure solution for electronic access control.
Features:
- Reader model: 40NKS-T0-000000
- Power voltage: 12 Vdc (power supply not included)
- Supported technology: Seos, iCLASS SE®, iCLASS SR®, iCLASS®, MIFARE Classic, mobile credentials with Seos technology (HID Mobile Access, MID-SUB-T100)
- Does not support 125 KHz technology
- Ideal for installation on door frames or any flat mounting surface
- Dimensions: 80 mm x 121.5 mm x 19.5 mm (3.15 inches x 4.78 inches x 0.77 inches)
- Input: Tricolor LED, acoustic indicator, active low retention
- Data output by: Pigtail
- Data output: Wiegand and RS-485 half-duplex (OSDP) via flexible cable (18 inches / 0.5 m) or terminal block
- Warranty: Lifetime
How are the readers programmed?
They only need to be programmed if NFC or Bluetooth is used, or when you want to adjust the range and colors of the LEDs.
- Here's a usage tutorial Video Usage Tutorial
