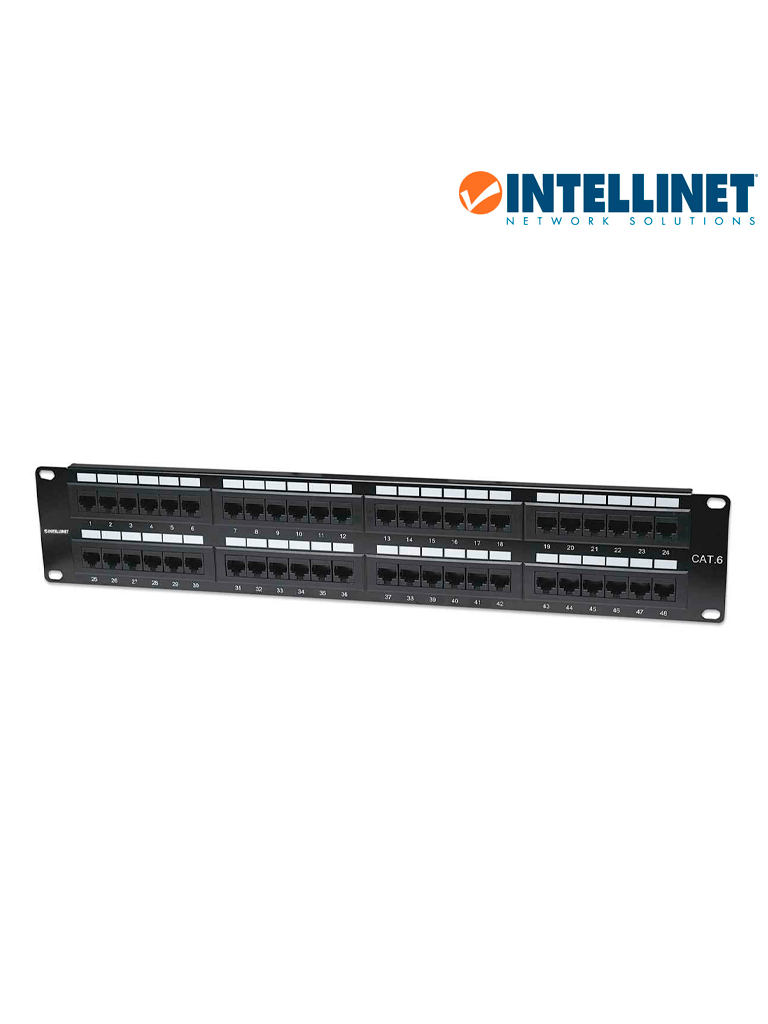

INTELLINET 560283 - 48-Port Cat6 Patch Panel, UTP, 2U
INTELLINET 560283 - 48-Port Cat6 Patch Panel, UTP, 2U
Disponible:
En Stock
- SKU 560283
$ 1,761.00 MXN
General Information
The special patch panel for working with UTP cat 6 cables, ideal for interconnecting telecommunications equipment. Solid and reliable terminators for cabling with jacks with a minimum of 3 mm to 50 micro-inches of gold plating.
- Compatible with 110 and Krone punch-down tools
- Supports solid and stranded wire gauges 22 and 26 AWG
- For use with Cat6 unshielded twisted pair (UTP) cable
- Ideal for Ethernet, Fast Ethernet, and Gigabit Ethernet network applications
- Connects 48 RJ45 ports to the network
- Occupies 2U height in the rack
- Complies with 19" rack mount standards
- 5-year Warranty
Key Features
- Standards
- IEEE 802.3 (10 Base-T Ethernet)
- IEEE 802.3u (100 Base-TX Fast Ethernet)
- IEEE 802.3ab (1000 Base-T Gigabit Ethernet)
- Certifications
- UL listed
- RoHS compliant
- Design
- Dimensions: 482 mm (Width) x 88 mm (Height) x 48 mm (Depth)
- Horizontal distance between left and right mounting holes: 465 mm
- Vertical distance between top and bottom mounting holes: 75.8 mm
- Weight: 1.27 kg
- Operating temperature: -40 – 80 °C
- Package contents
- Cat6 patch panel
- 4 mounting screws
- Quick installation guide
- Weight: 0.99 kg
- Dimensions: 482 mm (W) x 88 mm (H) x 48 mm (D)
- Packaging: Retail box packaging
Datasheet/Manual Downloads
