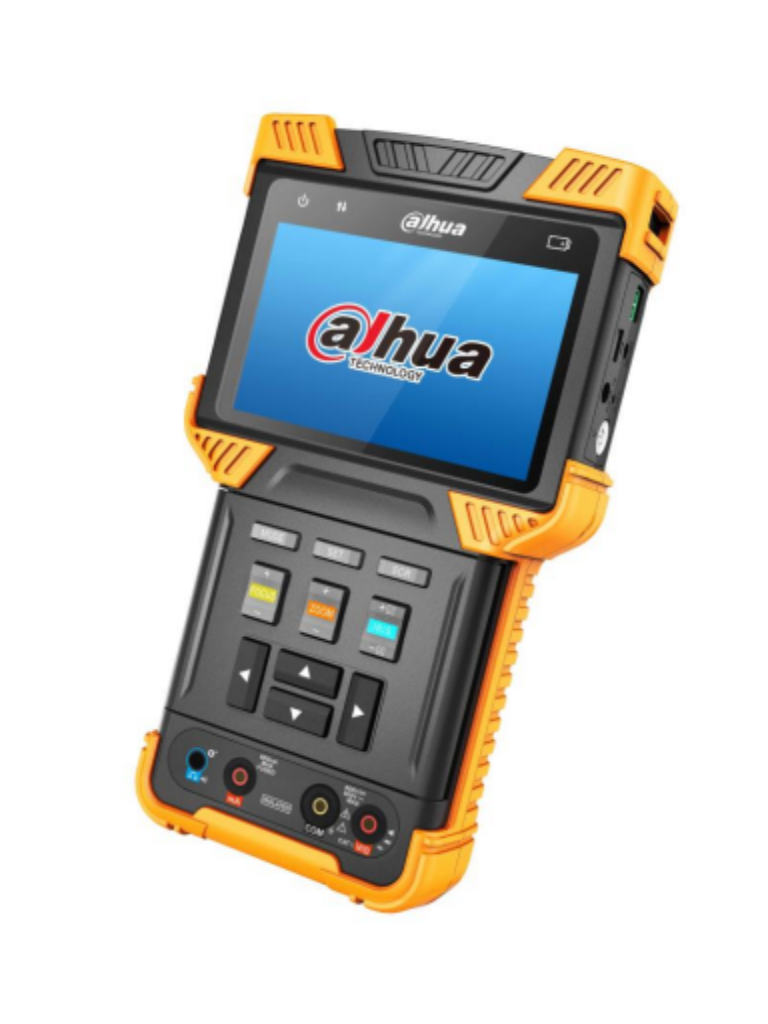

DAHUA PFM900-E - Probador de Video IP y HDCVI/ Soporta H.264 y H.265/ Soporta Control PTZ y Probador de Audio/ Soporta Prueba de Cable de Red/ Multímetro Digital/ Salida PoE 802.3at y Salida de 12V 2A/
- SKU DH-PFM900-E
- Categoria CCTV Industrial > Videovigilancia > Accesorios > Probadores de Video
HDCVI / Analog / IP / ONVIF / PTZ Control Signal Tester
Powered by the Linux system, the integrated mounting tester is a high-precision testing tool that aids in the on-site installation and maintenance of video surveillance devices.
Overview
The model PFM900E signal tester is a tool that aids in video surveillance installation, saving time and labor, video tester, high-resolution LCD screen, PTZ control (with more than 30 protocols), audio test, 8x digital zoom. HDCVI / AHD / TVI / CVBS analog video test, IP, TDR network cable tester, and digital multimeter function (AC / DC Voltage, AC / DC Current, Resistance, Capacitance, Diode forward voltage).
IPC Test
- IP camera type ONVIF (with PTZ control); RTSP; RTP
- IP camera test
- Supports automatic scanning of the entire network to discover ONVIF cameras.
- Supports manually adding an IP camera.
- Supports UDP / TCP for real-time video display.
- Supports 8-level digital zoom, snapshot, video recording (H.264 / H.265), photo viewing, and video playback
Main Features
Main features
- 4" IPS screen and foldable QWERTY keyboard with 45 keys;
- Supports H.264 / H.265 HD decoding protocol;
- Supports IP, HDCVI / AHD / TVI / CVBS;
- Supports audio and RS485 control;
- Supports TDR network cable test and digital multimeter function;
- Supports PoE +, DC12V / 2A power output; Replaceable 7.4V / 22.2Wh lithium-ion polymer battery, which can last 8 hours for normal use;
- Dual LED flashlight.
Specifications
Physical port
- Network port 2 * 10 / 100M / 1G RJ45 (LAN / PSE, PD)
- BNC port 1 * video input (HDCVI / TVI / AHD / CVBS), 1 * video output.
- Function port: 1 RS485 output, 1 DC12V output (load), 1 mini USB connector, 1 3.5 mm. and Audio input, 1 reset button, and 1 power switch.
Analog video test
- HDCVI / AHD / TVI / CVBS format.
- HDCVI camera test.
- 1-channel BNC, highest resolution:
- Supports 1280x720P 25fps, 30fps, 50fps, 60fps / 1920x1080P 25fps, 30fps / 2560x1440P 25fps, 30fps
TVI camera test
- 1-channel BNC, highest resolution: Supports 1280x720P 25fps, 30fps, 50fps, 60fps / 1920x1080P 25fps, 30fps / 2048x1536 18fps, 25fps, 30fps / 2560x1440 15fps, 25fps, 30fps / 2592x1944 12fps, 20fps.
AHD camera test
- 1-channel BNC, highest resolution: Supports 1280x720P 25fps, 30fps / 1920x1080P 25fps, 30fps / 2560x1440P 15fps, 18fps, 25fps, 30fps
- CVBS camera test 1-channel BNC input, 1-channel BNC output, supports PAL / NTSC format (automatic adaptation)
- Camera test Real-time video, coaxial HD PTZ control, RS485 control, audio test, supports 8-level digital zoom, snapshot, video recording, photo viewing, and video playback.
