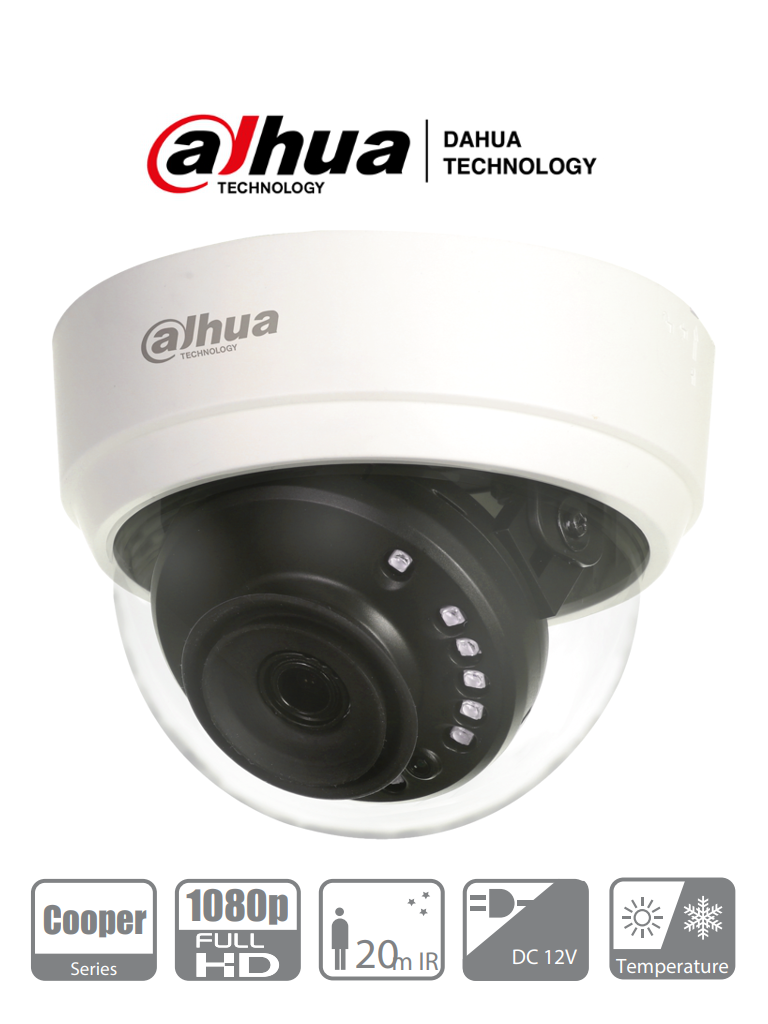

DAHUA HAC-D1A21N-0280B - Cámara Domo HDCVI 1080p/ 103 Grados de Apertura/ Lente de 2.8 mm/ IR 20 Metros/ Uso Interior/ TVI AHD Y CVBS/
- SKU DH-HAC-D1A21N-0280B
- Categoria CCTV Industrial > Videovigilancia > Cámaras CCTV HD > Domo
General Information
The HACD1A2128 model is a HDCVI camera belonging to the Cooper Series. It supports the following technologies: HDCVI, TVI, CVBS, and AHD. This camera transmits high-definition video via coaxial cable or UTP cable with a resolution of 2MP (1920x1080).
Multiple Video Formats
The camera supports multiple existing video formats on the market, such as HDCVI, HDTVI, AHD and CVBS. All four formats can be switched via the OSD menu or using PFM820 (UTC controller). This function makes the camera compatible with most existing HD/SD equipment of end-users.
Long Transmission Distance
HDCVI technology ensures long-distance and real-time transmission without any loss. It supports up to 800 meters for 1080P video and 1200 meters for 720P via coaxial cable, and up to 300 meters for 1080P video and 450 meters via UTP cable.
Smart IR
The camera is designed with microcrystalline LED infrared illumination for improved low-light performance. Smart IR is a technology to ensure brightness uniformity in B/W images under low light conditions. Dahua's exclusive Smart IR adjusts the intensity of the camera's infrared LEDs to compensate for an object's distance, and prevents IR LEDs from overexposing images when the object approaches the camera.
Multilingual OSD Menu
The OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask, and motion detection. The camera supports 11 languages for the OSD menu, namely Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian, and Polish.
DWDR
Our camera features DWDR, a function that measures, compensates, and adjusts the light in the captured image to then combine the bright light areas with the shadow areas in the same shot, creating a balance in the final image.
Features
- Long distance transmission
- Smart IR
- Multi-formats
- Multi-language OSD
- DWDR
Specifications
- 1/2.7" CMOS
- IR distance up to 20 m
- 12 IR LEDs
- Fixed lens 2.8mm
- Viewpoint High: 103°
- 1-channel BNC high-definition video output/CVBS video output (can be switched)
- Day/Night: Automatic (ICR) / Manual
- BLC/HLC/DWDR
- Noise reduction: 2D
- Power supply 12 V DC ±30 %
- Housing: plastic
- IP54 (Indoor use)
Download datasheets/manuals
