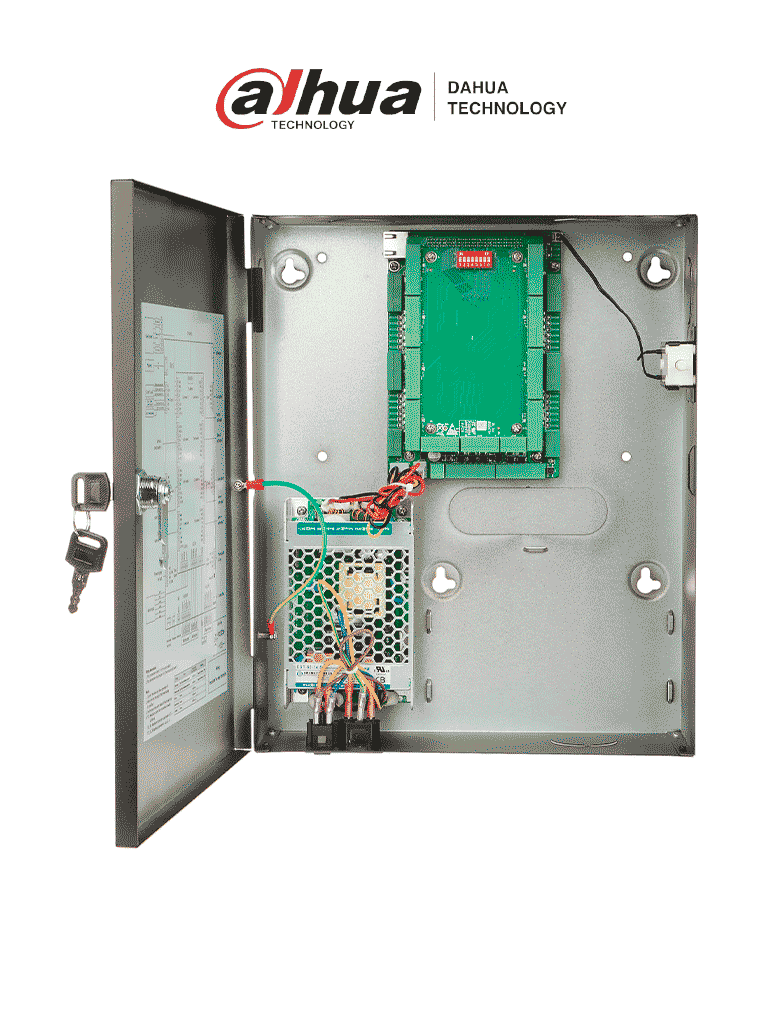

DAHUA DHI-ASC2208C-S - TCP/IP access control, advanced management for 8 doors and 8 readers, with support for 100,000 cards and 150,000 events. Integrates biometrics and supports backup battery
- SKU DHI-ASC2208C-S
General Information
The DAHUA DHI-ASC2208C-S is a TCP/IP access control system that manages up to 8 doors and 8 readers using Wiegand or RS485 connections. It can store data for up to 100,000 cards and 150,000 events, suitable for medium to large-scale applications. It supports DAHUA biometric devices and is compatible with a backup battery to maintain operation during power outages.
Main Features
- Communication: TCP/IP, with both RS-485 and Wiegand communication protocols.
- Storage: supports 100,000 user records and 500,000 card records. Data can be saved permanently in case of power failure.
- Lock Types: multi-door, multi-user unlock, anti-passback, and remote unlock.
- Alarms: reader tamper, intrusion alarm, unlock timeout alarm, duress alarm, invalid card threshold exceeded alarm, and incorrect password alarm.
- Supports RTC: built-in manual time setting and automatic time setting.
- Updates: supports online updating.
Technical Specifications
- Internet Protocol: IPv4; TCP; UDP
- User Capacity: 100,000
- Record Capacity: 500,000
- Fingerprint: 3,000
- Network: 1 ethernet port
- Product Dimensions: 337 mm × 272 mm × 90 mm
- Packaging Dimensions: 472 mm × 352 mm × 163 mm
- Weight: 3.5 kg
- Operating Temperature: -30 °C to + 60°C
- Operating Humidity: 5%–95% RH (non-condensing)
- Power Supply: 100-240 VAC
- Power Consumption: ≤ 0.8 W (standby), ≤ 39.6 W (operating)
Includes
- 1x Access Panel DHI-ASC2208C-S
- 1x Warranty Policy
- 1x User Manual
- 1x Pair of Keys
- 1x Power Cable
- 24x Terminal Blocks
- 1x Installation Screws
Frequently Asked Questions
What kind of connections does it support for readers?
This device supports connections via Wiegand or RS485 for readers.
What happens during power outages?
The access controller supports a backup battery to ensure continuous system operation during power outages.
What type of environments is this product suitable for?
This product is suitable for commercial, industrial, or institutional environments where secure and efficient access control is required.
TVC Content
- Dahua access control panel connection diagram with a magnetic lock
- Dahua access control panel connection with Wiegand reader
- How to connect an exit button or sensor to a Dahua access control panel
- Dahua access control panel connection with RS485 reader
