DAHUA DH-S4228-24GT-240 Switch PoE Gigabit gestionable con 24 puertos PoE, ideal para transmisión de larga distancia de hasta 250 m, perfecto para redes de Capa 2/
- SKU DH-S4228-24GT-240
General Information

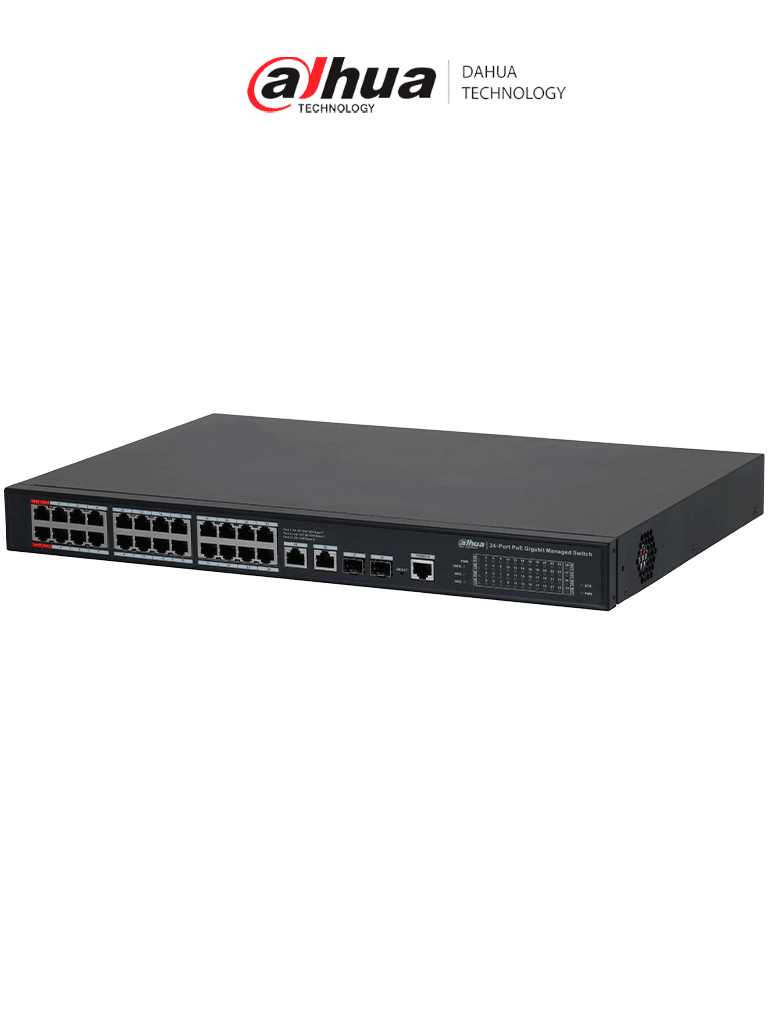

The DAHUA DH-S4228-24GT-240 is a managed Gigabit PoE Switch designed to optimize Layer 2 networks. With 24 PoE ports, it allows data transmission and power supply through a single Ethernet cable, ideal for devices such as video surveillance cameras and IP phones. It supports transmissions of up to 250 meters, exceeding the standard 100-meter limit, making it perfect for long-distance installations. As a managed switch, it offers advanced configurations, monitoring, and remote management, providing greater control over the network. It is a robust and cost-effective solution, ideal for small and medium-sized businesses that require a reliable, flexible, and high-performance network.
Main Features
- Network management: Layer 2.
- Supports: network management software and SNMP-based web.
- Network redundancy: STP/RSTP.
- Supports: PoE power consumption management, PoE shutdown management.
- Protocols: Supports IEEE802.3af, IEEE802.3at.
- Compatibility: With Hi-PoE.
- Transmission: Long distance of 250 m.
Technical Specifications
- Power supply: 100-240 VAC, 50/60 Hz, 3.5 A
- Operating temperature: – 10°C to 55°C
- Operating humidity: 5%–95% (RH)
- Power consumption: Idle load: ≤ 20 W; Full load: 240 W
- Static protection: Air discharge: 8 kV; Contact discharge: 6 kV
- Lighting protection: Common mode: 4 kV; Differential mode: 2 kV
- Product dimensions: 440 mm × 300 mm × 44 mm
- Packaging dimensions: 525 mm × 410 mm × 110 mm
- Net weight: 3.405 kg
Includes
- x1 Switch DH-S4228-24GT-240
- x1 User Manual
- x1 Warranty Policy
Frequently Asked Questions
How many PoE devices can be connected to the DAHUA DH-S4228-24GT-240 switch?
The switch has 24 PoE ports, allowing up to 24 PoE-compatible devices, such as IP cameras, VoIP phones, and wireless access points, to be connected.
What security features does the DAHUA DH-S4228-24GT-240 switch include?**
This switch includes multiple security features, such as PoE overload protection, port isolation, and the ability to manage network access through VLANs and QoS.
Is the switch compatible with non-PoE devices?
Yes, the switch is compatible with both PoE and non-PoE devices, making it versatile for different types of connections within the network.
TVC Content
- Switch Compatibility Table with DoLynk Care
- Dahua PoE Switch: Quick Operations
- Dahua PoE Switch: Installation
Download Technical Sheets/Manuals
