DAHUA DH-PFA140A - Anti-corrosion Junction Box/ Aluminum & SECC Material/ IP66/
- SKU DH-PFA140A
- Categoria CCTV Industrial > Videovigilancia > Accesorios > Soporte y Montaje
General Information

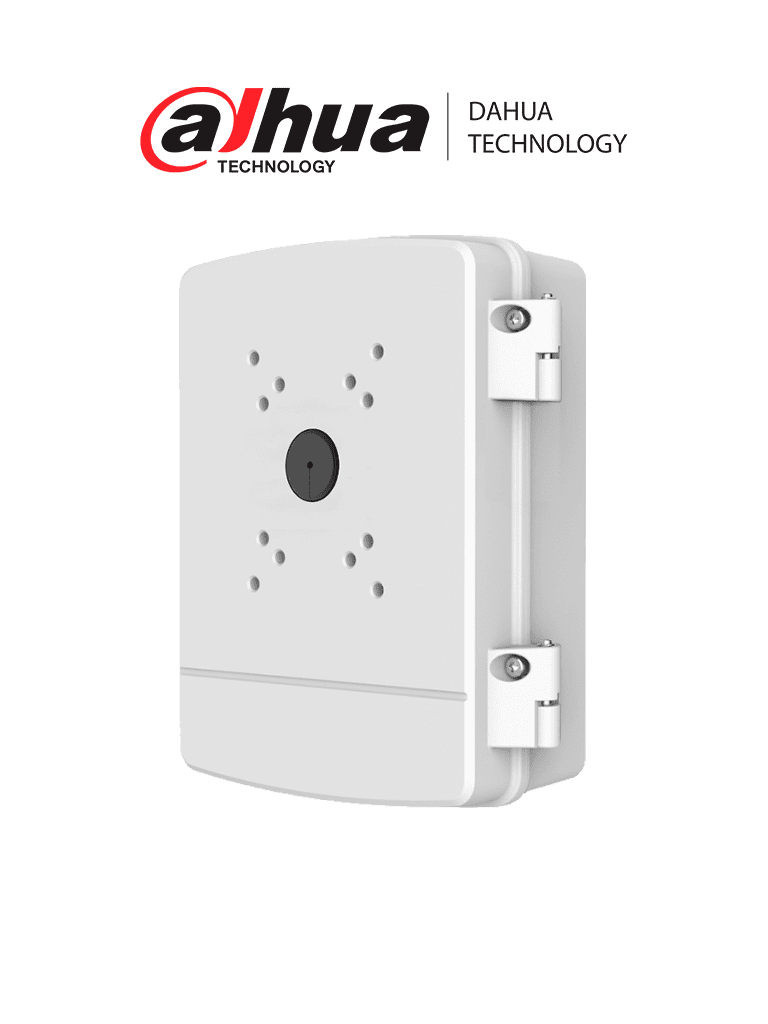

The PFA140 model is a junction box for Dahua PTZ cameras, designed aesthetically suitable for outdoor use and for ceiling or wall installation. The waterproof structure of the box allows it to be installed outdoors as it is made of Aluminum and SECC (Steel Electrogalvanized ColdRolled Coil).
Installation Methods
The PFA140 junction box allows it to be used in different ways in conjunction with PTZ brackets.
Wide compatibility
The junction box is compatible with the PFB303W and PFB305W brackets.
The PTZ cameras SD6C225IHCS3, SD60230UHNI, SD6AL245UHNI, SD6CE225IHCS3, SD6CE225UHNI, SD6CE430IHC can use this junction box and their respective bracket for an aesthetic, practical and secure installation.
Main Features
- Material: Aluminum and SECC
- Dimension 297 mm x 248 mm x 106 mm
- Thread in inches M20(G1/2”)
- Load capacity 8.0 kg
- Weight 3.2 kg
- Color white
- Operating temperature - 40ºC~+60ºC
- Humidity 0~90% relative humidity
