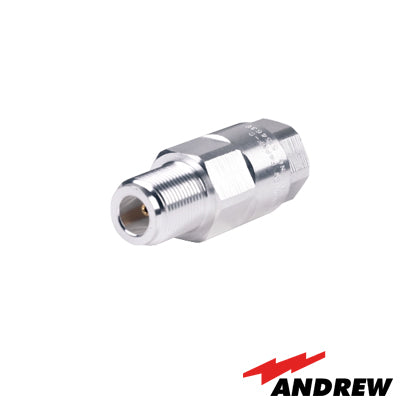

Conector N hembra para cable FSJ4-50B
Conector N hembra para cable FSJ4-50B
Disponible:
En Stock
- SKU F4PNF-C
- Categoria Radiocomunicación > Conectores > Heliax
$ 768.50 MXN
Key Features
- Female N-type connector for reliable connection
- Compatible with FSJ4-50B (1/2 inch) cable
- Self-expanding assembly mode for ease
- Silver-plated body for durability and resistance
- Gold center contact for superior conductivity
General Specifications
- Type: N Female Connector
- Body Style: Straight
- Brand: HELIAX®
- Mounting: Straight
- Impedance: 50 ohm
Electrical Specifications
- Operating Frequency: 0 – 12000 MHz
- Cable Impedance: 50 ohm
- 3rd Order IMD: -120 dBm @ 910 MHz
- Operating RF Voltage: 707.00 Vrms
- Outer Contact Resistance: ≤ 0.30 mΩ
- Inner Contact Resistance: ≤ 2.00 mΩ
- Insulation Resistance: ≥ 5000 MΩ
- Average Power: 0.6 kW @ 900 MHz
- Peak Power: 10.00 kW
- Insertion Loss: 0.05 dB typical
- Shielding Effectiveness: -110 dB
Mechanical Specifications
- Outer Connection Method: Auto-flare
- Inner Connection Method: Captive
- Outer Plating: Trimetal
- Inner Plating: Gold
- Connection Durability: 25 cycles
- Interface Durability: 500 cycles
- Retention Force: 890 N | 200 lbf
- Torque: 5.42 N·m | 48.00 in lb
- Insertion Force: 66.72 N | 15.00 lbf
- Pressurizable: No
Environmental Specifications
- Operating Temperature Range: -55 °C to +85 °C
- Storage Temperature Range: -55 °C to +85 °C
- Immersion Depth: 1 m
- Immersion Test: IEC 60529:2001, IP68
- Water Jet Test: IEC 60529:2001, IP66
- Humidity Resistance: MIL-STD-202F, Method 106F
- Mechanical Shock: MIL-STD-202F, Method 213B
- Thermal Cycling: MIL-STD-202, Method 107
- Vibration: MIL-STD-202F, Method 204D
- Corrosion: MIL-STD-1344A, Method 1001.1
Dimensions
- Nominal Size: 1/2 inch
- Diameter: 22.00 mm | 0.87 inches
- Length: 53.01 mm | 2.09 inches
- Weight: 95.26 g | 0.21 lb
Certifications
- RoHS: 2011/65/EU Compliant by Exemption
- China RoHS: SJ/T 11364-2006
- ISO 9001: 9001:2008
VSWR Performance
- 0–1000 MHz: VSWR 1.03 | Return Loss 36.00 dB
- 1000–2300 MHz: VSWR 1.05 | Return Loss 32.00 dB
- 2300–3000 MHz: VSWR 1.07 | Return Loss 29.00 dB
- 3000–4000 MHz: VSWR 1.17 | Return Loss 22.00 dB
- 4000–8000 MHz: VSWR 1.38 | Return Loss 16.00 dB
- 8000–10200 MHz: VSWR 1.5 | Return Loss 14.00 dB
Key Features
- Female N-type connector for reliable connection
- Compatible with FSJ4-50B (1/2 inch) cable
- Self-expanding assembly mode for ease
- Silver-plated body for durability and resistance
- Gold center contact for superior conductivity
General Specifications
- Type: N Female Connector
- Body Style: Straight
- Brand: HELIAX®
- Mounting: Straight
- Impedance: 50 ohm
Electrical Specifications
- Operating Frequency: 0 – 12000 MHz
- Cable Impedance: 50 ohm
- 3rd Order IMD: -120 dBm @ 910 MHz
- Operating RF Voltage: 707.00 Vrms
- Outer Contact Resistance: ≤ 0.30 mΩ
- Inner Contact Resistance: ≤ 2.00 mΩ
- Insulation Resistance: ≥ 5000 MΩ
- Average Power: 0.6 kW @ 900 MHz
- Peak Power: 10.00 kW
- Insertion Loss: 0.05 dB typical
- Shielding Effectiveness: -110 dB
Mechanical Specifications
- Outer Connection Method: Auto-flare
- Inner Connection Method: Captive
- Outer Plating: Trimetal
- Inner Plating: Gold
- Connection Durability: 25 cycles
- Interface Durability: 500 cycles
- Retention Force: 890 N | 200 lbf
- Torque: 5.42 N·m | 48.00 in lb
- Insertion Force: 66.72 N | 15.00 lbf
- Pressurizable: No
Environmental Specifications
- Operating Temperature Range: -55 °C to +85 °C
- Storage Temperature Range: -55 °C to +85 °C
- Immersion Depth: 1 m
- Immersion Test: IEC 60529:2001, IP68
- Water Jet Test: IEC 60529:2001, IP66
- Humidity Resistance: MIL-STD-202F, Method 106F
- Mechanical Shock: MIL-STD-202F, Method 213B
- Thermal Cycling: MIL-STD-202, Method 107
- Vibration: MIL-STD-202F, Method 204D
- Corrosion: MIL-STD-1344A, Method 1001.1
Dimensions
- Nominal Size: 1/2 inch
- Diameter: 22.00 mm | 0.87 inches
- Length: 53.01 mm | 2.09 inches
- Weight: 95.26 g | 0.21 lb
Certifications
- RoHS: 2011/65/EU Compliant by Exemption
- China RoHS: SJ/T 11364-2006
- ISO 9001: 9001:2008
VSWR Performance
- 0–1000 MHz: VSWR 1.03 | Return Loss 36.00 dB
- 1000–2300 MHz: VSWR 1.05 | Return Loss 32.00 dB
- 2300–3000 MHz: VSWR 1.07 | Return Loss 29.00 dB
- 3000–4000 MHz: VSWR 1.17 | Return Loss 22.00 dB
- 4000–8000 MHz: VSWR 1.38 | Return Loss 16.00 dB
- 8000–10200 MHz: VSWR 1.5 | Return Loss 14.00 dB
