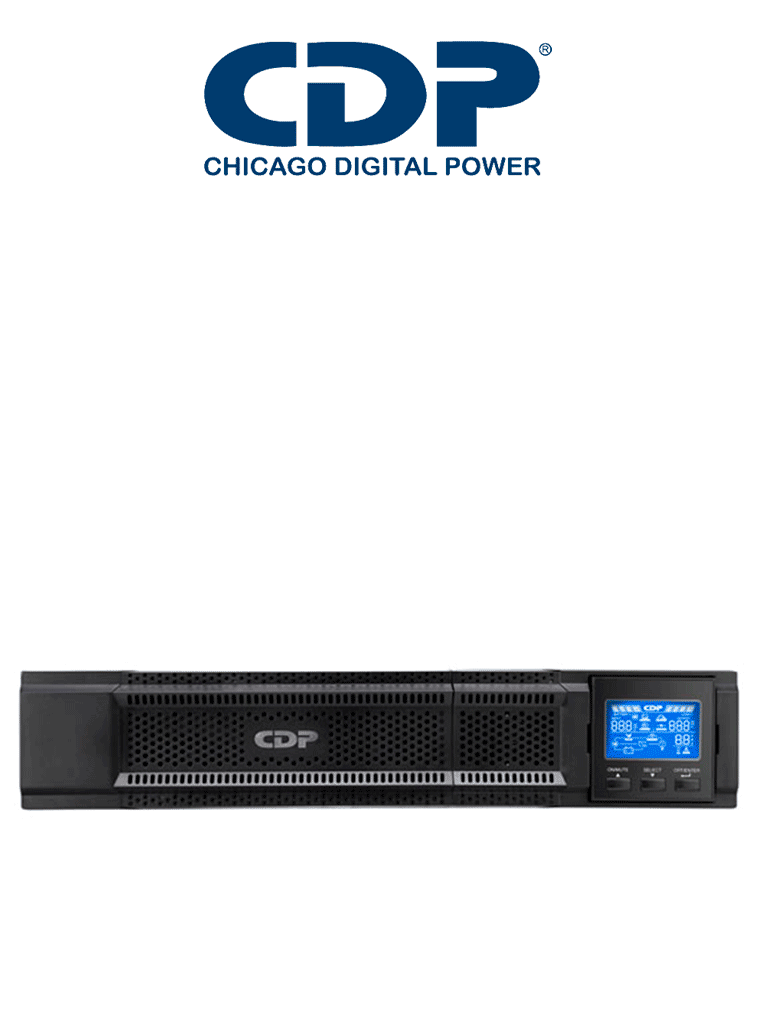

CDP UPO11-2RT AX - UPS Online / 2000VA / 2000W / 8 terminales de salida / 4 terminales programables / Pantalla LCD / 5min a plena carga /
- SKU UPO11-2RT AX
- Categoria CCTV Industrial > Fuentes de Energía > Reguladores y UPS
Main Features
UPS equipment specially designed for a maximum capacity of 2 KVA (1800W) in which we can interconnect all the devices we need, providing in turn a backup time dependent on the total wattage connected, these equipment are focused for use directly in racks or cabinets.
As it is a double conversion UPS, it is ideal for critical applications such as protecting medical equipment, laboratories, mission-critical servers, or telecommunications. Its advanced design eliminates 99% of electrical problems and offers total isolation of the load from the commercial grid, guaranteeing maximum reliability and performance. In addition, it has UL certification that guarantees its quality and safety.
Advantages
- Rack Mountable (Can also be mounted as a Tower)
- Phase SINGLE-PHASE
- Expandable up to 1 battery bank.
- SNMP Sold separately.
Specifications
Model: UPO11-2RT AX
Power: 2000VA / 2000W
Input
- Nominal voltage: 120VAC
- Voltage range: 55VAC - 150VAC ± 3%
- Frequency range: 40Hz - 70Hz
- Power factor: ≥ 0.99 (at nominal voltage and full load)
Output
- Output voltage: 100/110/115/120 VAC
- AC voltage regulation: ±1%
- Frequency range:
- 50Hz ± 0.1Hz
- 60Hz ± 0.1Hz
- Crest factor: 3:1 (max.)
- Overload:
- 100%-110%: Alarm.
- 110%-130%:
- Battery mode: UPS shuts down in 30 seconds.
- Normal mode: UPS transfers to bypass when electricity is normal.
- >130%:
- Battery mode: UPS shuts down immediately.
- Normal mode: UPS transfers to bypass when electricity is normal.
- Harmonic distortion: ≤ 2% THD (linear loads)
- Transfer time: Zero
- Wave type (battery mode): Pure sine wave
- Efficiency:
- AC mode: 92%
- Eco mode: 98%
Batteries
- Type / Quantity: 12V / 9Ah x 4
- Recharge time: 4 hours to 90% (standard model)
- Charging current: 1-8A (max.)
- Charging voltage: 54.7VDC ± 1%
- Autonomy time:
- Full load: 4 minutes
- Half load: 12 minutes
- Battery banks: Expandable up to 10 banks
Physical
- Dimensions (Length x Height x Depth): 440 x 88 x 510 mm
- Net weight: 19.5 kg
- Number of rack units: 2U
Environmental
- Humidity: 0%-90% RH @ 0-45°C (non-condensing)
- Noise level: Less than 50dBA @ 1 meter
Control and Monitoring
- Smart RS232 / USB: Yes
- Optional SNMP: Support via internal SNMP or SNMP DB9
- Software compatibility: Supports Windows 2000/2003/XP/Vista/2008/7/8/10, Linux and Mac
Certifications
- NOM
- ISO9001
- ISO14001
- CIDET
- TÜV
- UL
- CE
Includes
- UPO11-2RTAX UPS
- Rack Mount Hardware
- Operation Manual
Forum
For more information on installation, configuration or technical support, access the specialized forum at TVCenlinea.com. Find additional resources and technical solutions to optimize the use of this UPS.
