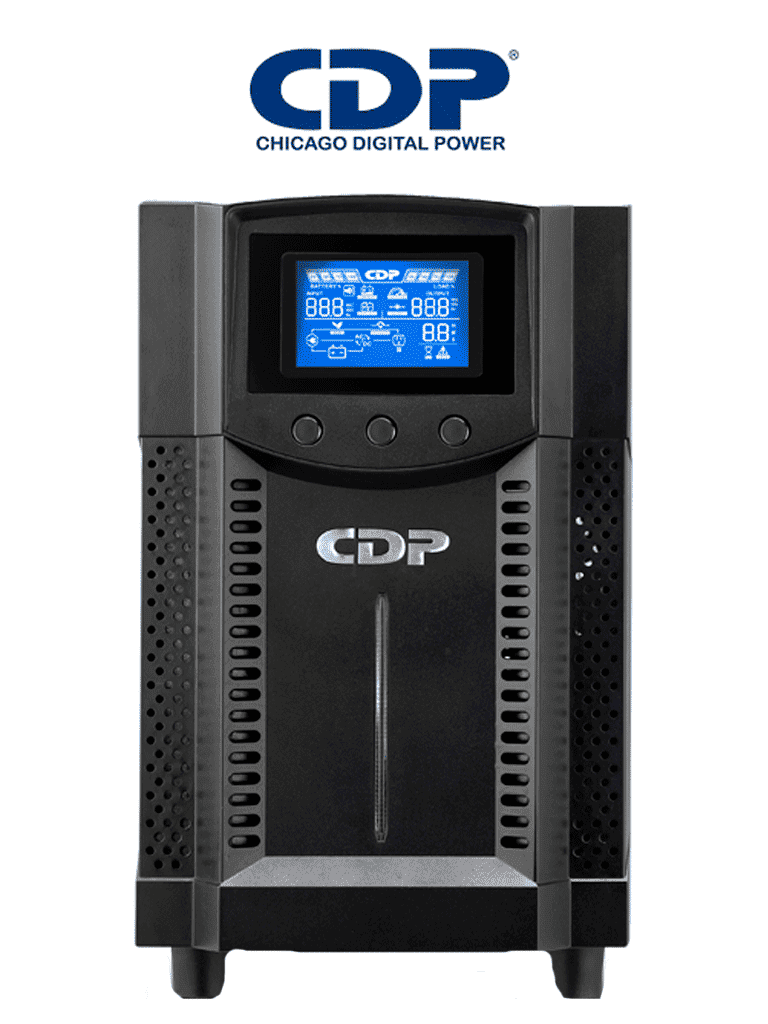

CDP UPO11-1 AX- UPS Online de 1000VA/ 1000W / 6 Salidas / 2 programables / Pantalla LCD / Entrada para banco de baterías / Respaldo 5min a plena carga

General Information.

It is a sophisticated, easy-to-use 1KV device built using the highest and most modern technology, including state-of-the-art features demanded by IT, communications, and laboratory professionals. It is equipped with DSP (Digital Signal Processor) digital signal processors which allow managing and monitoring all operations. It is ideal for servers, data storage systems, telecommunications equipment, industrial equipment, and high-performance equipment.

*Backup time 56 min. for 1 device with 200 watts consumption.

Main Features

Specifications

• Nominal Power: 1000VA / 1000W
• Input Voltage: 120 VAC (nominal voltage)
• Input Voltage Range: 55 VAC - 150 VAC
• Input Frequency Range: 40Hz - 70Hz
• Power Factor: 1
• Output Voltage: 100/110/115/120/127 VAC (+/- 1%)
• Output Voltage Regulation (AC): +/- 1%
• Output Frequency Range

50 Hz +/- 0.1 Hz

60 Hz +/- 0.1 Hz

• Crest Current: 3:1 (maximum)
• Overload

100% - 110%: Alarm

110% - 130%: Battery mode (UPS shuts down in 30 seconds)

130%: Battery mode (UPS shuts down immediately)

Normal mode: UPS transfers to bypass mode when electricity is normal

• THD (linear loads): ≤ 2%
• THD (non-linear loads): ≤ 4%
• Transfer Time: Near (near zero)
• Wave Type: Pure sine wave
• Efficiency in AC Mode: 92%
• Efficiency in Eco Mode: 98%
• Battery Type / Quantity: 12V / 7Ah x 3
• Recharge Time: 3 hours to 95% (typical)
• Charging Current: 1 - 8 Ah (maximum)
• Charging Voltage: 41.0 VDC +/- 1%
• Autonomy Time

Full load: 6 minutes

Half load: 15 minutes

• Battery Banks: Extendable up to 10 banks
• Dimensions (Length x Height x Depth): 145 x 240 x 400 mm
• Net Weight: 13 kg
• Relative Humidity: 0-90% RH @ 0-45°C (non-condensing)
• Noise Level: Less than 50 dBA at 1 meter
• Control Interface: Smart RS232 or USB (optional SNMP)
• SNMP Control: Supported via internal SNMP or SNMPDB9
• Compatible Software: Supports Windows 2000 / 2003 / XP / Vista / 2008 / 7, 8, 10, Linux and Mac
• Certifications

NOM

ISO 9001

ISO 14001

CIDET

TÜV

UL

CE

Includes

• UPS Equipment Model UPO11-1 AX
• Operation Manual
• Warranty

Forum

If you need assistance with the configuration, installation, or technical support of the UPO11-1 AX, visit the help forum at TVCenlinea.com. There you will find answers to your questions, tutorials, and direct support from experts.

Double conversion technology.

It is called double conversion because the energy flow to the load passes through two conversion stages, first through the rectifier and then through the inverter, thereby eliminating all electrical grid disturbances that can generate undesired operation in the connected load.

Isolated outlet banks.

Isolated outlet banks. They allow the user to assign outlets depending on the type of application, whether it is very critical or critical. This prevents accidental UPS shutdowns that could affect more sensitive loads.

Connector for external battery bank.

Connector for external battery banks which can support up to three battery banks of 12 batteries each, with this we will obtain a total of 38 batteries including the 2 batteries that the UPS comes with from the factory, and thanks to this, we can ensure power for a longer time.

Important to Read:

It has a Nema 5-15 P connection, *Requires physical ground to function correctly.

We have equipment specially designed for your requirements; if you need a special system for the protection of your equipment, please let us know.
