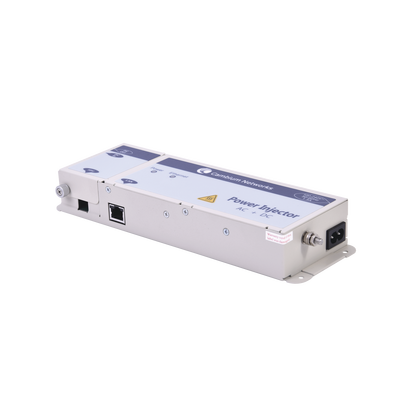

C000065L002D - Advanced AC/DC IDU Power Supply with Protector, Compatible with PTP300/400/500/600 Radios
C000065L002D - Advanced AC/DC IDU Power Supply with Protector, Compatible with PTP300/400/500/600 Radios
Disponible:
En Stock
- SKU CG52A
- Categoria Redes e IT > Networking > Inyectores PoE
$ 10,848.32 MXN
Advanced power supply (IDU) for powering PTP300, PTP400, PTP500, and PTP600 Series equipment, with solar power arrays or AC power.
Redundancy is provided between Alternating Current and Direct Current, with Alternating Current as primary.
Ideal for applications where the link is critical and cannot be left without power for any reason.
Part Number: C000065L002D
Key Features
PHYSICAL CHARACTERISTICS
- Dimensions: 250 mm (9.75 in) x 40 mm (1.5 in) x 80mm (3 in)
- Weight: 0.864 kg (1.9 lbs)
- Operating Temperature: -40º C to 60º C
- Installation: Indoor
- Humidity: 0 to 90% (Non-condensing)
ELECTRICAL
- AC Input: 90 - 264 Vac, 47-60 Hz
- DC Input: 37-60 Vdc
- DC Output: Network output: 58 V, +2 V, -0 V
- DC Input: Output voltage at maximum rated output current, no more than 1.5 V below DC input voltage.
- Maximum DC output cable length: 3 Meters
- AC Input Connector: IEC-320-C8
- Output Amperage: 1.7A
- Efficiency: Over 84%
- Hold-up Time: 20 Milliseconds
1 YEAR WARRANTY
Advanced power supply (IDU) for powering PTP300, PTP400, PTP500, and PTP600 Series equipment, with solar power arrays or AC power.
Redundancy is provided between Alternating Current and Direct Current, with Alternating Current as primary.
Ideal for applications where the link is critical and cannot be left without power for any reason.
Part Number: C000065L002D
Key Features
PHYSICAL CHARACTERISTICS
- Dimensions: 250 mm (9.75 in) x 40 mm (1.5 in) x 80mm (3 in)
- Weight: 0.864 kg (1.9 lbs)
- Operating Temperature: -40º C to 60º C
- Installation: Indoor
- Humidity: 0 to 90% (Non-condensing)
ELECTRICAL
- AC Input: 90 - 264 Vac, 47-60 Hz
- DC Input: 37-60 Vdc
- DC Output: Network output: 58 V, +2 V, -0 V
- DC Input: Output voltage at maximum rated output current, no more than 1.5 V below DC input voltage.
- Maximum DC output cable length: 3 Meters
- AC Input Connector: IEC-320-C8
- Output Amperage: 1.7A
- Efficiency: Over 84%
- Hold-up Time: 20 Milliseconds
1 YEAR WARRANTY
