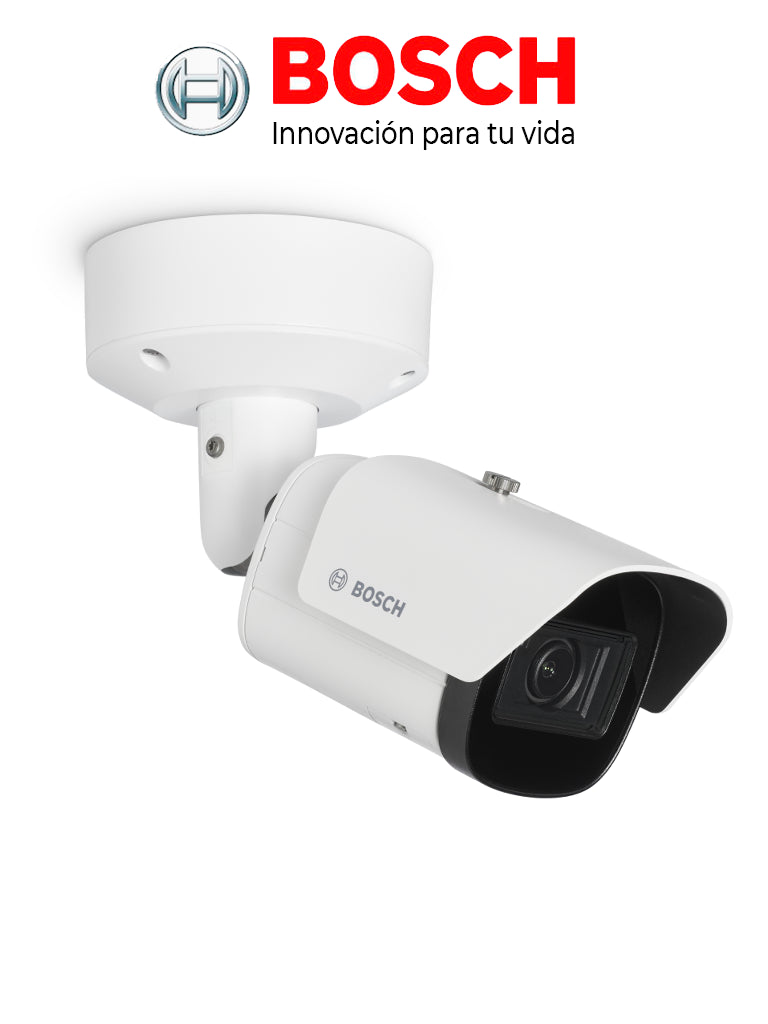

BOSCH V_NBE5702AL - Cámara bullet de 2 MP, HDR, 3.2-10.5 mm, IP66/67, IK10 / DINION 5100i
- SKU NBE-5702-AL
- Categoria CCTV Industrial > Videovigilancia > Cámaras IP > Bullet, Software Almacenamiento
Overview
This is a versatile and professional surveillance camera for outdoor monitoring. It features a 1/2.8" sensor and HDR technology with 1080p HD resolution, and an integrated intelligent infrared illuminator that provides high performance in dark environments. The integrated Intelligent Video Analytics Pro (IVA Pro) system enhances complete situational awareness and triggers relevant alerts. Its robust design and stable housing with a sunshield prevent overexposure during certain times of the day and contribute to optimal image stability.
Compatibility
System Integration and ONVIF Compliance
- ONVIF Profile S
- ONVIF Profile G
- ONVIF Profile M
- ONVIF Profile T
Accessories
- NDA-U-PMAL Large Pole Mount Adapter
- NBA-7070-PA0 24VAC Surveillance Cabinet
- NBA-7070-PA1 120VAC Surveillance Cabinet
- NBA-7070-PA2 230VAC Surveillance Cabinet
- NDA-U-CBB Conduit Back Box, 148mm
- NCA-WLAN-EU Wireless Installation Dongle EU
- NCA-WLAN-NA Wireless Installation Dongle NA
- MSD-064G IP SECURITY MICROSD CARD 64GB
- MSD-128G IP SECURITY MICROSD CARD 128GB
- MSD-256G IP SECURITY MICROSD CARD 256GB
- MVC-IVA-PER IVA Pro Perimeter
- MVC-IVA-TRA IVA Pro Traffic
Key Features
- 1080p60 for highly detailed images.
- Starlight camera technology with excellent low-light performance.
- IVA Pro offers highly reliable deep learning-based person and vehicle detection in scenes ranging from sterile to crowded and congested areas.
- Wide dynamic range to see all details in light and dark areas of the scene.
- Integrated intelligent infrared illuminator up to 60 m (197 ft) viewing distance.
Technical Specifications
- Resolution: 2MP
- Lens: 3.2 - 10.5 mm
- IR Illuminator: 60 meters
- IVA Pro
- Audio Input and Output: 1
- Alarm Input and Output: 1
- Protection Rating: IP67
- SD Card Slot: Yes
- AC Input Voltage: 24 VAC
- DC Input Voltage: 12 VDC
- PoE Input: PoE IEEE 802.3af / 802.3at Type 1, Class 3
- Video Compression: H.264 (ISO/IEC 14496-10); MJPEG; H.265/HEVC
- Ethernet Type: 10/100BASE-T; Auto-sensing; Full / half duplex
- Operating Temperature: -40° - 55°C
- Dimensions: 148 X 97 mm
- Weight: 2.50 kg
- Material: Aluminum
Includes
- 1 NBE-5702-AL Camera
- 1 Mounting Plate
- 1 Secure Screw (pre-installed on camera)
- 2 Cable Glands
- 1 TR20 Allen Wrench
- 2 Terminal Connectors for audio/alarm/power
- 1 RJ45 Guide
- 2 Rubber Grommets for conduit
- 1 Desiccant
- 1 Quick Installation Guide
- 1 Safety Information
- 3 UX Labels for the installer
Download Datasheets/Manuals
