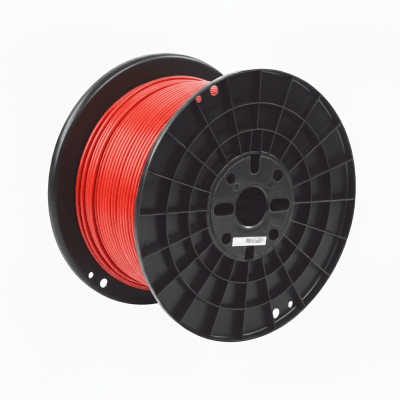

UTP Cable Reel, 4-Pair, Vari-MaTriX HD, Cat6A, 23 AWG, CMR (Riser), Red, 305 Meters (1000 Feet)

The Category 6A/Class EA cable is manufactured with 23 AWG copper conductors with PE and HDPE foam (CM and CMR) or with Low Smoke Zero Halogen (LSZH) HDPE insulation. The copper conductors are twisted into pairs, separated by a tape-type divider. The four pairs are surrounded by a Vari-MaTriX tape and a flame-retardant jacket. The tape minimizes the cable diameter and suppresses alien crosstalk effects, retaining the UTP's immunity to electromagnetic interference. The small cable diameter maximizes density so that existing conduits can be used when replacing Category 6 cabling.

Applications

• High-Speed Voice/Data and Video Networks
• Megapixel IP CCTV Installations
• Wireless Networks
• IEEE 802.3af and 802.3at Power Over Ethernet Applications
• 10BASE-T, 100BASE-T, 1000BASE-T and 10GBASE-T Applications

Technical Specifications

• Performance: Channel certified in a 4-connector configuration up to 100 meters and exceeds the requirements of ANSI / TIA-568.2-D Category 6A and ISO 11801 Class EA standards swept up to 650 MHz to support 10GBASE-T transmission over twisted pair cabling systems as part of the Panduit® TX6A™ 10Gig UTP copper cabling system
• Standards Compliance: UL CMR-LP (0.5A) Listed
• Nominal Diameter: 6.2 mm
• Conductor: 23 AWG solid copper insulated with PE (CMR)
• Flame Rating: Riser (CMR) UL1666
• PoE Compliance: Complies with IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt for PoE applications with UL PoH certification per UL4299
• Maximum Tension: 25 lbf (110 N) max
• Installation Temperature: 0°C to 60°C
• Operating Temperature: -20ºC to 75ºC
