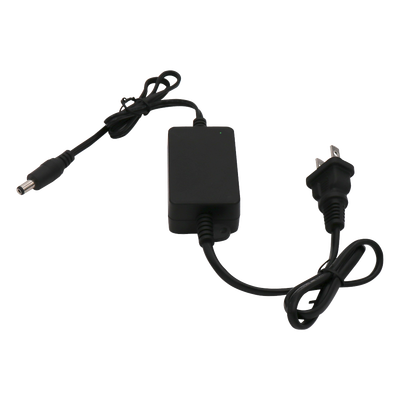

Adaptador 5 Vcc / 1A / UL / Voltaje de Entrada de 100-240 Vca / Para uso exclusivo con lectores biométricos de 5 Vcc de la marca ZK
Review: 5 -
Rated 5/5 based on 11 customer reviews
"Excelentes productos" by , written onJun 4, 2021
Los productos siempre en tiempo y forma.
Vigilancianetwork 1

Adaptador 5 Vcc / 1A / UL / Voltaje de Entrada de 100-240 Vca / Para uso exclusivo con lectores biométricos de 5 Vcc de la marca ZK

Disponible: En Stock
🔒 Precio exclusivo para distribuidores e integradores (B2B) Crea tu cuenta gratuita y accede a precios especiales, disponibilidad en tiempo real y condiciones comerciales preferenciales.

P5DC1AZK

5 Vdc regulated power supply @ 1A; Input voltage 100-240 Vac.

EPCOM POWER LINE is a leading brand in adapters with high power efficiency for electronic security equipment due to its advantages of approvals and certifications, overvoltage protection, and anti-interference protection circuits.

...

Main Features:

  • Input voltage 100V - 240Vac
  • Output voltage 5Vdc +/- 5%
  • Output current 1A
...

Physical and Electrical Characteristics:

  • Output power 5 W
  • Nominal frequency 50-60 Hz
  • Efficiency 75% Minimum
  • Power loss 0.1 W
  • Output peak 120mV
  • Dimensions (W x H x D) 62.2 x 39 x 23.4 mm
  • Operating conditions Temperature: -20°C ~ +45°C, Humidity: 20% ~ 90%RH
...

Outstanding Features:

  • For use with 5Vdc biometrics from the ZK brand
  • Short-circuit protection, output is automatically interrupted and restarted.
  • Plug size 5.5mm * 2.5mm * 10mm (Different from conventional)
  • Certifications: CE, UL, CUL, GS

Download the datasheet here
