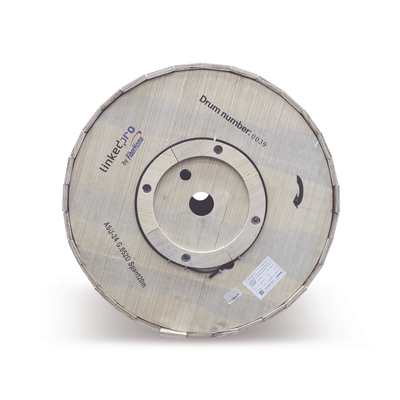

Reel of 4 Kilometers of Aerial Mini ADSS (ASU) G.652D Fiber Optic Cable, 24-Fiber Singlemode, Outdoor, Span 120, Loose Tube
Review: 5 -
Rated 5/5 based on 11 customer reviews
"Excelentes productos" by , written onJun 4, 2021
Los productos siempre en tiempo y forma.
Vigilancianetwork 1

Reel of 4 Kilometers of Aerial Mini ADSS (ASU) G.652D Fiber Optic Cable, 24-Fiber Singlemode, Outdoor, Span 120, Loose Tube

Disponible: En Stock
$ 83,469.36 MXN

General Description

The Mini ADSS (All Dielectric Self Supported) fiber optic cable is designed for aerial installations between poles.

Mini ADSS cables withstand the necessary tension thanks to their reinforcing elements and contain no metallic components.

Logo de LINKEDPRO BY FIBERHOME
Technical Specifications
  • Optical Fiber: Mini ADSS G.652D Single-mode Loose Tube
  • Outer Jacket: MDPE (Medium-Density Polyethylene)
  • Maximum Tension: 1200N (Operation), 2000N (Installation)
  • Operating Temperature: -20ºC ~ +65ºC
  • Span: 120 meters
  • Protection: Against UV rays and moisture
  • Nominal Diameter: 7.8 mm
  • Minimum Bending Radius: Installation 25D, Operation 12.5D
  • Crush Resistance: 1000N/10cm
  • Nominal Weight: 58 kg/km
  • Fibers: 24
  • Sheath: Black
  • Reel: 4 km
  • Dimensions: 1000 x 1000 x 650 mm
  • Gross Reel Weight: 260 kg
Compatible Preformed Guy Grip
Installation Graph
Gráfico de rendimiento del cable MiniADSS

Download the datasheet here

General Description

The Mini ADSS (All Dielectric Self Supported) fiber optic cable is designed for aerial installations between poles.

Mini ADSS cables withstand the necessary tension thanks to their reinforcing elements and contain no metallic components.

Logo de LINKEDPRO BY FIBERHOME Technical Specifications
  • Optical Fiber: Mini ADSS G.652D Single-mode Loose Tube
  • Outer Jacket: MDPE (Medium-Density Polyethylene)
  • Maximum Tension: 1200N (Operation), 2000N (Installation)
  • Operating Temperature: -20ºC ~ +65ºC
  • Span: 120 meters
  • Protection: Against UV rays and moisture
  • Nominal Diameter: 7.8 mm
  • Minimum Bending Radius: Installation 25D, Operation 12.5D
  • Crush Resistance: 1000N/10cm
  • Nominal Weight: 58 kg/km
  • Fibers: 24
  • Sheath: Black
  • Reel: 4 km
  • Dimensions: 1000 x 1000 x 650 mm
  • Gross Reel Weight: 260 kg
 Compatible Preformed Guy Grip Installation Graph Gráfico de rendimiento del cable MiniADSS

Download the datasheet here
