Conmutador KM USB | 4 puertos | Conmutación ilimitada | RS232 | Controla 4 computadoras con 1 teclado/ratón

General characteristics

• PC connections: 2 (Remote port selector)
• Connectors:
  • 1 x HDMI female
  • 2 x USB Type A female
  • 1 x 3.5 mm audio jack female (Green)
  • 1 x 3.5 mm audio jack female (Pink)
• KVM ports (PC):
  • 2 x HDMI male
  • 2 x USB Type A male
  • 2 x 3.5 mm audio jack male (Green)
  • 2 x 3.5 mm audio jack male (Pink)
  • Power (optional): 1 x Micro USB Type B female
• Switches:
  • Port selection: 4 x Pushbutton
  • Station selection: 1 x Slide switch

• LEDs:
  • Selected: 4 (Green)
• Emulation:
  • Keyboard / Mouse: USB
  • Scan interval: 1-99 seconds (default: 5 seconds)
• Power consumption: DC5V:1.69W:33BTU
• Environmental conditions:
  • Operating temperature: 0-50°C
  • Storage temperature: -20-60°C
  • Humidity: 0-80% RH, non-condensing
• Physical properties:
  • Housing: Metal, Plastic
  • Weight: 0.50 kg (1.1 lb)
  • Dimensions (L x W x H): 20.00 x 8.06 x 2.50 cm

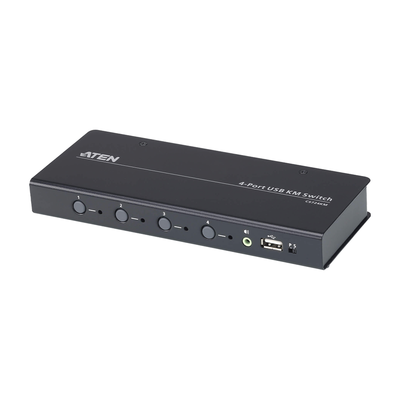

The CS724KM is a 4-port USB KM switch that allows you to control up to 4 computers with a single keyboard and mouse. Two switches can be daisy-chained to control up to 8 computers. It offers multiple ways to switch between computers (buttons, hotkeys, cursor, mouse wheel, RS-232) and features Boundless Switching technology, which allows switching PCs by simply moving the cursor to the edge of the screen.

The CS724KM's Boundless Switching feature allows working with up to 16 monitors (or 8 with two daisy-chained switches), facilitating seamless switching between computers, ideal for critical environments. It includes an intuitive interface to customize the cursor path according to the monitor layout and is compatible with Windows.

The CS724KM includes advanced features such as bus-powered (no external adapter), independent keyboard/mouse, USB peripheral, and audio switching via hotkeys. It is designed to save space, improve productivity, and facilitate management in multi-monitor and multi-tasking environments, making it ideal for control rooms and complex applications.
