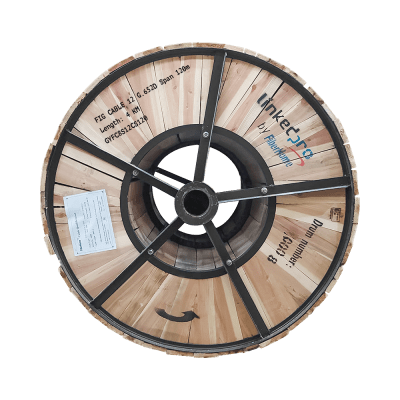

4 Km Spool Aerial Figure 8 Armored Fiber Optic, Anti-rodent G.652D, 12-Strand Singlemode, Outdoor, Span 120
4 Km Spool Aerial Figure 8 Armored Fiber Optic, Anti-rodent G.652D, 12-Strand Singlemode, Outdoor, Span 120
Disponible:
Sin Stock
- SKU GYFC-8S-12C-S120/4KM
- Categoria Redes e IT > Redes FTTH/PON > Cable de Fibra Óptica
🔒 Precio exclusivo para distribuidores e integradores (B2B)
Crea tu cuenta gratuita y accede a precios especiales, disponibilidad en tiempo real y condiciones comerciales preferenciales.
The Figure 8 ARMORED fiber optic cable is designed for aerial installations between poles.
This type of cable offers the necessary tensile strength thanks to its steel messenger wire.
Technical Specifications:
- Optical Fiber: Figure 8 Armored G.652D Single-mode Loose Tube
- Outer Jacket: HDPE (High-Density Polyethylene)
- Messenger: Galvanized steel
- Maximum tension: 8000 N
- Operating temperature: -20ºC to +70ºC
- Span: 120 meters (distance between poles)
- Protection: UV rays and moisture
- Cable width: 11.1 ± 0.5 mm (Optical Tube)
- Cable height: 18.5 ± 0.5 mm (Optical Tube + Messenger)
- Steel messenger diameter: 3.6 mm
- Messenger + sheath diameter: 5.6 ± 0.5 mm
- Minimum bending radius: Installation 25D, Operation 15D
- Crush resistance: 2000N
- Nominal weight: 193 ± 15 kg/km
- Fibers: 12
- Color: Black jacket
- Price: Per 4 km reel
- Gross reel weight: 772 kg
Compatible Preform
The Figure 8 ARMORED fiber optic cable is designed for aerial installations between poles.
This type of cable offers the necessary tensile strength thanks to its steel messenger wire.
Technical Specifications:
- Optical Fiber: Figure 8 Armored G.652D Single-mode Loose Tube
- Outer Jacket: HDPE (High-Density Polyethylene)
- Messenger: Galvanized steel
- Maximum tension: 8000 N
- Operating temperature: -20ºC to +70ºC
- Span: 120 meters (distance between poles)
- Protection: UV rays and moisture
- Cable width: 11.1 ± 0.5 mm (Optical Tube)
- Cable height: 18.5 ± 0.5 mm (Optical Tube + Messenger)
- Steel messenger diameter: 3.6 mm
- Messenger + sheath diameter: 5.6 ± 0.5 mm
- Minimum bending radius: Installation 25D, Operation 15D
- Crush resistance: 2000N
- Nominal weight: 193 ± 15 kg/km
- Fibers: 12
- Color: Black jacket
- Price: Per 4 km reel
- Gross reel weight: 772 kg
Compatible Preform
