Switch industrial gestionable PoE, puerto 1-2 PoE 24/48. Puertos 3-8 puertos 802.3 af/at/bt, hasta 60 W
Review: 5 -
Rated 5/5 based on 11 customer reviews
"Excelentes productos" by , written onJun 4, 2021
Los productos siempre en tiempo y forma.
Vigilancianetwork 1

Switch industrial gestionable PoE, puerto 1-2 PoE 24/48. Puertos 3-8 puertos 802.3 af/at/bt, hasta 60 W

Disponible: En Stock
$ 5,088.45 MXN

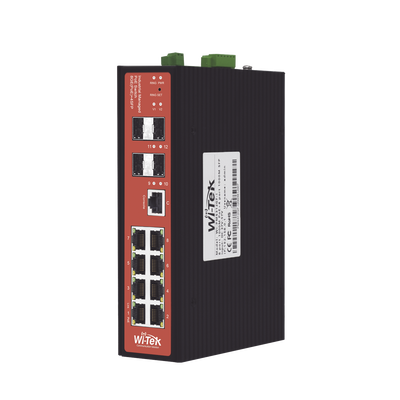

Industrial PoE Switch Mixed 24V/48V PoE

Wi-Tek's mixed 24V/48V industrial PoE switch is designed to provide a transport network solution for the WISP market.

The products are designed to automatically identify different power supply requirements, compatible with all power devices. Devices, a one-time investment to meet various business requirements.

The products are designed for easy installation, supporting wall and DIN rail mounting, industrial-grade CPU, redundant power supply, supporting operation in harsh environments, to ensure stable project operation.

Smart PoE Watchdog Function in a Switch

Plug and play, no configuration. Automatically detects and restarts the IP camera if connectivity is lost.

Specifications
  • Dimensions: 200 x 140 x 50 mm
  • Network Interfaces: 8 10/100/1000 Mbps Ports, 4 SFP
  • Ventilation: Fans
  • Power Supply: Power 1 (Main): 37-57 Vdc, Power 2 (Backup): 37-57 Vdc
  • PoE Ports (RJ45): Ports: 1-2 > 24V Passive/48V 802.3 af/at, Ports: 3-4 > 802.3 af/at/bt 60W, Ports: 5-8 > 802.3 af/at, End-Span 30W
  • Bandwidth: 24 Gbps
  • Mac Address Table: 8K
  • Packet Forwarding Rate: 17.86 Mpps
  • Protection Level: Lightning protection 8KV, Standard: IEC6000-4-5
  • Operating Temperature: -40 to 80° C
  • Certifications: CE, FCC
Features
  • Transmission Method: Store-And-Forward
  • Advanced Features: Spanning Tree, VLAN, QoS, IGMP, Access Control
Others
  • Package Contents: Industrial PoE Switch, Temperature Sensor, User Guide, Warranty
