PTP-550 Hasta 1.36 Gbps / 4910 - 6200 MHz / 802.11 AC Wave 2 MU-MIMO 4: 4x4 / BackHaul Conectorizado / Ideal para distancias de +80 km (C050055H014A)
Review: 5 -
Rated 5/5 based on 11 customer reviews
"Excelentes productos" by , written onJun 4, 2021
Los productos siempre en tiempo y forma.
Vigilancianetwork 1

PTP-550 Hasta 1.36 Gbps / 4910 - 6200 MHz / 802.11 AC Wave 2 MU-MIMO 4: 4x4 / BackHaul Conectorizado / Ideal para distancias de +80 km (C050055H014A)

Disponible: En Stock
$ 12,058.42 MXN
Cambium Networks

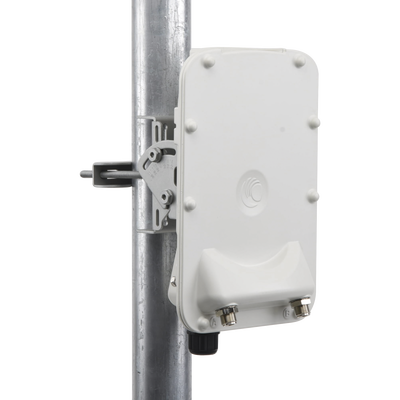

PTP 550E Connectorized

Enterprise-Class Gigabit Point-to-Point Solution

1.4 Gbps Total Capacity
4.9 - 6.2 GHz Frequency Range
IP66/67 Metal Protection
2.2 - 6 ms Ultra Low Latency

Cutting-Edge Performance with Wave 2

The PTP 550E is designed to meet gigabit capacity needs in medium and long-distance backhauls. Based on 802.11ac Wave 2 technology, it implements a unique dual-channel architecture that allows for the aggregation of non-contiguous channels, maximizing performance even in high-interference environments.

Channel Bonding

Ability to operate on two independent channels of up to 80 MHz each. This allows achieving 1.4 Gbps by summing asymmetric data streams.

Dynamic Channel Selection (DCS)

Constant spectrum optimization. The radio automatically searches for the cleanest channel and moves without interruption to ensure maximum link reliability.

System Technical Specifications

Parameter Detailed Specification
Operating Frequency 4.9 GHz to 6.2 GHz
Channel Widths Dual channel: 2x (20, 40, 80 MHz)
Spectral Efficiency 8.5 bps/Hz
Transmit Power Up to +26 dBm
Network Interfaces 1x RJ45 Gigabit (PoE) + 1x SFP
Dimensions (Connectorized) 185 x 278 x 88 mm (7' x 11' x 3.5')
Network Management cnMaestro™ (Cloud/On-premises)

Configuration and Presentation

* The PTP 550E includes PoE injector and mounting hardware. Rugged metal casing for extreme environments (-40° to +60° C).

Download the technical sheet here
