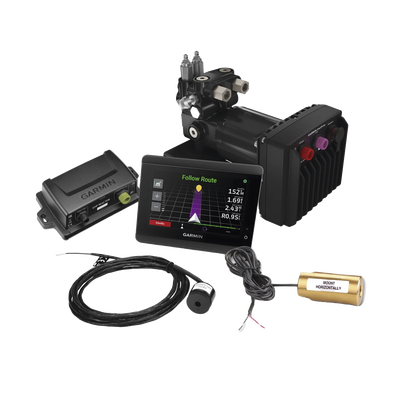

The CCU (Central Control Unit) is a robust and versatile device designed for operation in extreme conditions. With a fully sealed, water-resistant plastic casing compliant with IEC 529 IPX7 standards, this unit offers high impact resistance and reliable performance in a temperature range of -15°C to 55°C. Ideal for marine and vehicle applications, the CCU is compatible with steering cylinders of various sizes, providing precise and efficient control.
Key Features
Features
- Fully sealed, water-resistant plastic casing (IPX7)
- Operating temperature range: -15°C to 55°C
- Input power: 9-16 V
- Cable length: 3 m
- Compatible with steering cylinders from 65.5-393.3 cc
- Standby power consumption: less than 1 A
- Configurable flow rate from 0 to 2.4 L per minute
Technical Details
Specifications
- Dimensions: 91.4 mm diameter
- Weight: 159 g
- Temperature range: -15°C to 55°C
- CCU cable length: 3 m
- NMEA 2000 power input: 9-16 V
- NMEA 2000 LEN: 3 (150 mA)
Interfaces and Connectivity
- Power cable length: 2.7 m
- Fuse: 40 A, blade type
- Power consumption: standby: less than 1 A; enabled: 5-10 A; peak: 34 A
- Flow rate: configurable from 0 to 2.4 L per minute
- Compatible with steering cylinders from 65.5-393.3 cc
Applications and Use Cases
Marine Applications
Steering control in vessels of various sizes, ensuring precise and safe handling.
Special Vehicles
Use in special vehicles requiring robust and reliable steering control in extreme conditions.
Industrial Machinery
Implementation in industrial machinery that needs an efficient and adaptable steering system.
Download the technical sheet here
