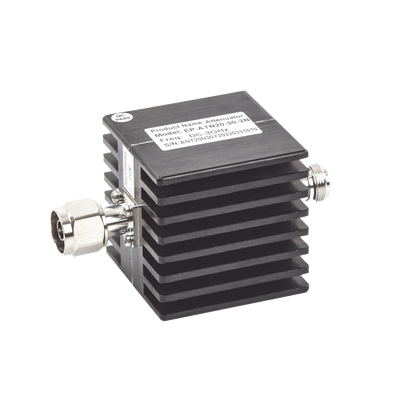

Atenuador en Línea de 30 dB, 20 vatios máx. CC-3 GHz, interior, N macho-hembra.
Atenuador en Línea de 30 dB, 20 vatios máx. CC-3 GHz, interior, N macho-hembra.
Disponible:
Sin Stock
- SKU EP-ATN-2030-3N
- Categoria Radiocomunicación > Equipo de Laboratorio > Atenuadores
🔒 Precio exclusivo para distribuidores e integradores (B2B)
Crea tu cuenta gratuita y accede a precios especiales, disponibilidad en tiempo real y condiciones comerciales preferenciales.
Key Features
- 30 dB Attenuation
- Frequency: 0-3 GHz
- RF Connector: N Male-Female
- Power Capacity: 20W
- VSWR: <1.2
- Temperature Range: -40°C to +50°C
Technical Specifications
- Type: In-Line Attenuator
- Attenuation: 30 dB
- Frequency: 0-3 GHz
- Max Power: 20W
- VSWR: <1.2
- Tolerance: ±1.0 dB (21-30 dB)
- Impedance: 50Ω
- RF Connector: N Male-Female
- Temperature: -40°C to +50°C
- Dimensions: Ø40×84 mm
- Weight: 165g
Construction Features
- Compact design
- Lightweight
- Robust indoor construction
- RF connection options (N, SMA, DIN, BNC)
- High-quality components
Common Applications
- Communication systems
- Test and measurement equipment
- Wireless networks
- Industrial systems
Main Benefits
- Compact and lightweight design
- High power capacity
- Low insertion loss
- Attenuation accuracy
- Reliability in extreme conditions
Key Features
- 30 dB Attenuation
- Frequency: 0-3 GHz
- RF Connector: N Male-Female
- Power Capacity: 20W
- VSWR: <1.2
- Temperature Range: -40°C to +50°C
Technical Specifications
- Type: In-Line Attenuator
- Attenuation: 30 dB
- Frequency: 0-3 GHz
- Max Power: 20W
- VSWR: <1.2
- Tolerance: ±1.0 dB (21-30 dB)
- Impedance: 50Ω
- RF Connector: N Male-Female
- Temperature: -40°C to +50°C
- Dimensions: Ø40×84 mm
- Weight: 165g
Construction Features
- Compact design
- Lightweight
- Robust indoor construction
- RF connection options (N, SMA, DIN, BNC)
- High-quality components
Common Applications
- Communication systems
- Test and measurement equipment
- Wireless networks
- Industrial systems
Main Benefits
- Compact and lightweight design
- High power capacity
- Low insertion loss
- Attenuation accuracy
- Reliability in extreme conditions
