Fuel sensor / BLE 4.0 connectivity / Wireless / Easy installation / 1000mm trimmable / up to 7 years of continuous operation / Robust and hermetic construction / Shockproof
Review: 5 -
Rated 5/5 based on 11 customer reviews
"Excelentes productos" by , written onJun 4, 2021
Los productos siempre en tiempo y forma.

Fuel sensor / BLE 4.0 connectivity / Wireless / Easy installation / 1000mm trimmable / up to 7 years of continuous operation / Robust and hermetic construction / Shockproof

Disponible: En Stock
$ 3,030.35 MXN

Wireless fuel level sensor for vehicle tracker

A great leap into the future of wireless connections in telematics

Installing a fuel sensor has never been so easy and fast with the TDBLE1000 sensor

Traditional fuel sensor installation takes too much time. Wireless communication avoids the lengthy process of laying cables throughout the vehicle. NO MORE CABLES!

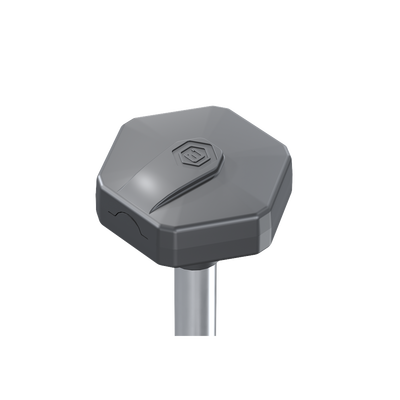

Sensor TDBLE1000
Instalación TDBLE1000

Super fuel saving

Maintaining control of fuel expenses is paramount for all companies

Controlling fuel increases savings for the company and also helps detect events such as fuel refills, allowing detection of whether the declared amount is the same as the amount entered into the tank.

Fuel discharge events help detect extraction or theft, providing live control of the data processed by the sensor.

Conexiones TDBLE1000

Technical characteristics

Accuracy and operation
  • Measurement error: Not more than 1%
  • Operating mode: Digital
  • Interface: Bluetooth LE (BLE)
  • Protocol: Escort BLE
Communication
  • Range: Up to 10 meters
  • Exchange period: 10 seconds
  • Receiver sensitivity: -96 dB
  • Transmitter power: 0 dB
Protection
  • Protection degree: IP69S
  • Discharge protection: Class III
  • Explosion protection: Intrinsic safety electrical circuit of level 'ia'
  • Protection marking: 0ExiаIIÐ’ Т6 Ð¥
Operating conditions
  • Ambient temperature: -45°C to +50°C
  • Limited temperature: -60°C to +85°C
  • Atmospheric pressure: 84 - 106.7 kPa
  • Limited pressure: 57 - 110 kPa
Physical characteristics
  • Probe length: 1.0 m
  • Base: 4 cm
  • Total: 1.4 m
  • Nominal length: Indicated on label
  • Weight: 0.9 kg
  • Supply voltage: 3.6 V

Videos


Download the technical sheet here
