Beacon or Electronic Identifier for Drivers, Passengers, and Trailers via Bluetooth for GPS Equipment

Disponible: En Stock
$ 379.56 MXN

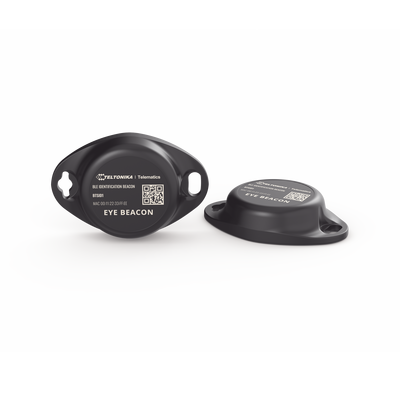

The Teltonika EYE Beacon is the ultimate wireless solution for asset tracking and monitoring across a wide range of industries. This advanced Bluetooth Low Energy (BLE) beacon features a robust, water-resistant casing and a long-lasting battery, ensuring reliable performance in any environment. Designed for quick, easy, and economical setup, the EYE Beacon is ideal for traceability applications, delivery tracking, and monitoring of mobile objects in logistics, agriculture, and construction. Additionally, it is perfect for indoor tracking solutions, such as in warehouses, hospitals, and transportation hubs.
Fully compatible with Teltonika's firmware platform, the EYE Beacon supports iBeacon and Eddystone protocols and can be configured, scanned, and updated anytime, anywhere using the dedicated Teltonika mobile app.
Specifications
Electronics
  • Microcontroller: ST Microelectronics BlueNRG-2
  • Quartz Crystals: 32.768 kHz, 16 MHz
  • Bluetooth Operating Frequency: 2.402 - 2.480 GHz
  • Bluetooth Antenna Gain (peak): 1.58 dBi
Dimensions and Weight
  • Dimensions: 56.6 mm x 38 mm x 13 mm
  • Weight: 18 g
Connectivity
  • Bluetooth: Compatible with Bluetooth 4.2, Certified Bluetooth 5.2
  • Range: Up to 80 meters
  • Available Transmit Power: Up to 8 dBm
  • Sensitivity: -88 dBm
Battery and Power
  • Model: CR2450
  • Type: Lithium, Manganese Dioxide (Li/MnO2)
  • Total Capacity: 600 mAh
  • Replaceable: No
  • 5+ years (Tx = 2 dBm; interval: 3 s)
  • 10+ years (Tx = 2 dBm; interval: 10 s)
Features
  • Operating Modes: Beacon ID, LED
  • Casing Protection: IP67
  • Mounting: Two screw/strap/tape holes
Environmental Requirements
  • Humidity (non-condensing): 0% to 100%
  • Operating Temperature: -20°C to +60°C (-4°F to +140°F)
Certifications
  • CE RED [EU]: Yes
  • FCC [USA]: Yes
  • UKCA [UK]: Yes
  • RoHS: Yes
  • E-mark: Yes
  • EAC: TBD
  • ANATEL: Yes
Application
  • EYE APP (sensor adjustment)
Wireless solution for easy integration
Thanks to Bluetooth technology, no invasive installations are required, allowing for much simpler and more effective operation.
Trailer identification
Identify your trailers more easily and without invasive installations.
Indoor tracking solutions
Identification beacons continue to transmit unique signals, which GPS trackers read and identify. FM devices send this data, along with their GNSS location, to a server for analysis. Specific software determines the location of all beacons (i.e., tagged assets or people) based on their proximity to the nearest tracker.

Download the technical sheet here
