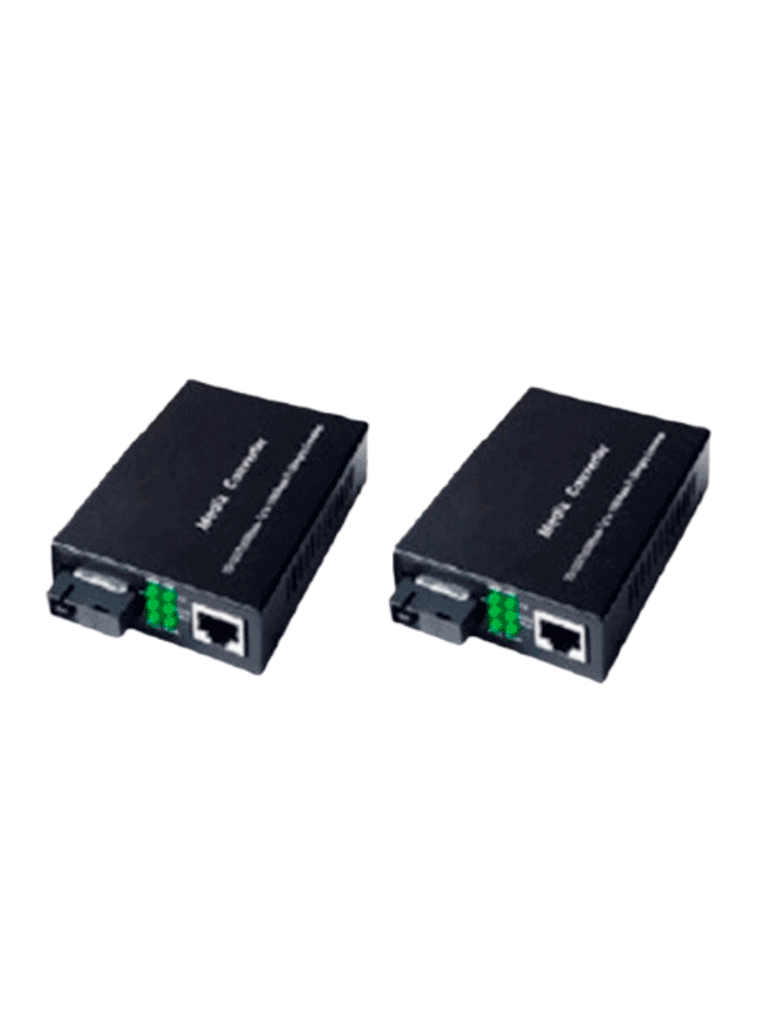

TCE - GMC11CS+GMC112CS - Par de conversores de medios VDM monomodo, 1 puerto RJ45 10/100/1000, 1 puerto SC/UPC, hasta 20KM
- SKU GMC111CS + GMC112CS
- Categoria CCTV Industrial > Cableado Estructurado > Accesorios Y Herramientas Fibra óptica > Convertidores De Medios
General information
The GMC111CS and GMC112CS are media conversion devices that enable the integration and extension of copper and fiber optic networks, providing benefits such as increased transmission distance, immunity to electromagnetic noise, higher bandwidth, and improved security.
Main features
Technical specifications.
GMC111CS:
- Ports: 1 RJ45 10/100/1000Mbps port (Auto MDI/MDIX), 1 SC 1000Mbps port
- Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
- Transmission Media: 10BASE-T: UTP cable category 3, 4, 5 (maximum 100m), 100BASE-TX/1000Base-T: UTP cable category 5, 5e or higher (maximum 100m), 1000BASE-X: single-mode/multimode fiber optic
- Basic Functions: Full-duplex Flow Control (IEEE 802.3x), Half-duplex Backpressure Flow Control (Half-Duplex)
- Dimensions (W x D x H): 3.72.91.1 inches (94.573.027.0 mm)
GMC112CS:
- Ports: 1 RJ45 10/100/1000Mbps port (Auto MDI/MDIX), 1 SC 1000Mbps port
- Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
- Transmission Media: 10BASE-T: UTP cable category 3, 4, 5 (maximum 100m), 100BASE-TX/1000Base-T: UTP cable category 5, 5e or higher (maximum 100m), 1000BASE-X: single-mode/multimode fiber optic
- Basic Functions: Full-duplex Flow Control (IEEE 802.3x), Half-duplex Backpressure Flow Control (Half-Duplex)
- Dimensions (W x D x H): 3.72.91.1 inches (94.573.027.0 mm)
Includes
- Media converters (GMC111CS + GMC112CS)
- Power cable
- Power adapter
- User manual
Distance extension
By allowing devices to be connected via fiber optics, the GMC111CS and GMC112CS can extend the transmission distance beyond what would be possible using standard copper cables, which is especially useful in environments where a long distance between network devices is required.
Immunity to electromagnetic noise
Fiber optics are immune to electromagnetic interference, meaning that signals transmitted over fiber optics are less susceptible to interference and can provide a more stable and reliable connection in noisy or high-interference environments.
Increased bandwidth
Fiber optics can support higher bandwidth than copper cable, allowing for faster transmission speeds and greater data transfer capacity. This can improve overall network performance and enable support for high-bandwidth applications, such as high-definition video streaming or real-time communications.
Security
Fiber optics are inherently more secure than copper cable, as they are more difficult to intercept without being detected. This can be beneficial in environments where network security is a major concern, such as in military, government, or business applications.
Download technical datasheets/manuals
